CA3420EZ - Renesas Electronics

Description: The CA3420 is an integrated circuit operational amplifier that combines PMOS transistors and bipolar transistors on a single monolithic chip. The CA3420 BiMOS operational amplifier features gate protected PMOS transistors in the input circuit to provide very high input impedance, very low input currents (less than 1pA). The internal bootstrapping network features a unique guardbanding technique for reducing the doubling of leakage current for every 10oC increase in temperature. The CA3420 operates at total

Download CA3420EZ Model

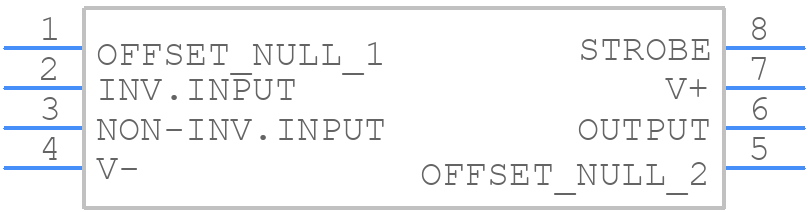

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CA3420EZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E8.3 (JEDEC MS-001-BA ISSUE D) 8 LEAD DUAL-IN-LINE PLASTIC PACKAGE
click to zoom
3D Models
CA3420EZ - Renesas Electronics  - 3D model - Dual-In-Line Packages - E8.3 (JEDEC MS-001-BA ISSUE D) 8 LEAD DUAL-IN-LINE PLASTIC PACKAGE
click to zoom

CA3420EZ Details

  • Manufacturer Part Number:

    CA3420EZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    E8.3

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-09-19

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000005 µA

  • Bias Current-Max (IIB) @25C:

    0.000005 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.585 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -11 V

  • Neg Supply Voltage-Nom (Vsup):

    -10 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    11 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    500

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    7.62 mm

CA3420EZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF) for power decoupling, and place it as close to the VCC pin as possible. Ensure the power supply is stable and regulated, with a minimum of 3.0V and a maximum of 5.5V.
  • The recommended clock frequency is 32.768 kHz, but the device can operate with a clock frequency range of 30 kHz to 100 kHz. However, the accuracy and stability of the clock source will affect the overall performance of the device.
  • To minimize power consumption, set the device to sleep mode when not in use. Use the power-down mode (PD pin) to reduce power consumption to approximately 1.5 μA. Additionally, adjust the clock frequency and voltage regulator settings to optimize power consumption.
  • The maximum allowed capacitance for the crystal oscillator is 20 pF. Exceeding this value may affect the oscillator's stability and accuracy.
