CA91L8260B-100CEV - Renesas Electronics

CA91L8260B-100CEV Details

• Manufacturer Part Number:

  CA91L8260B-100CEV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TEPBGA

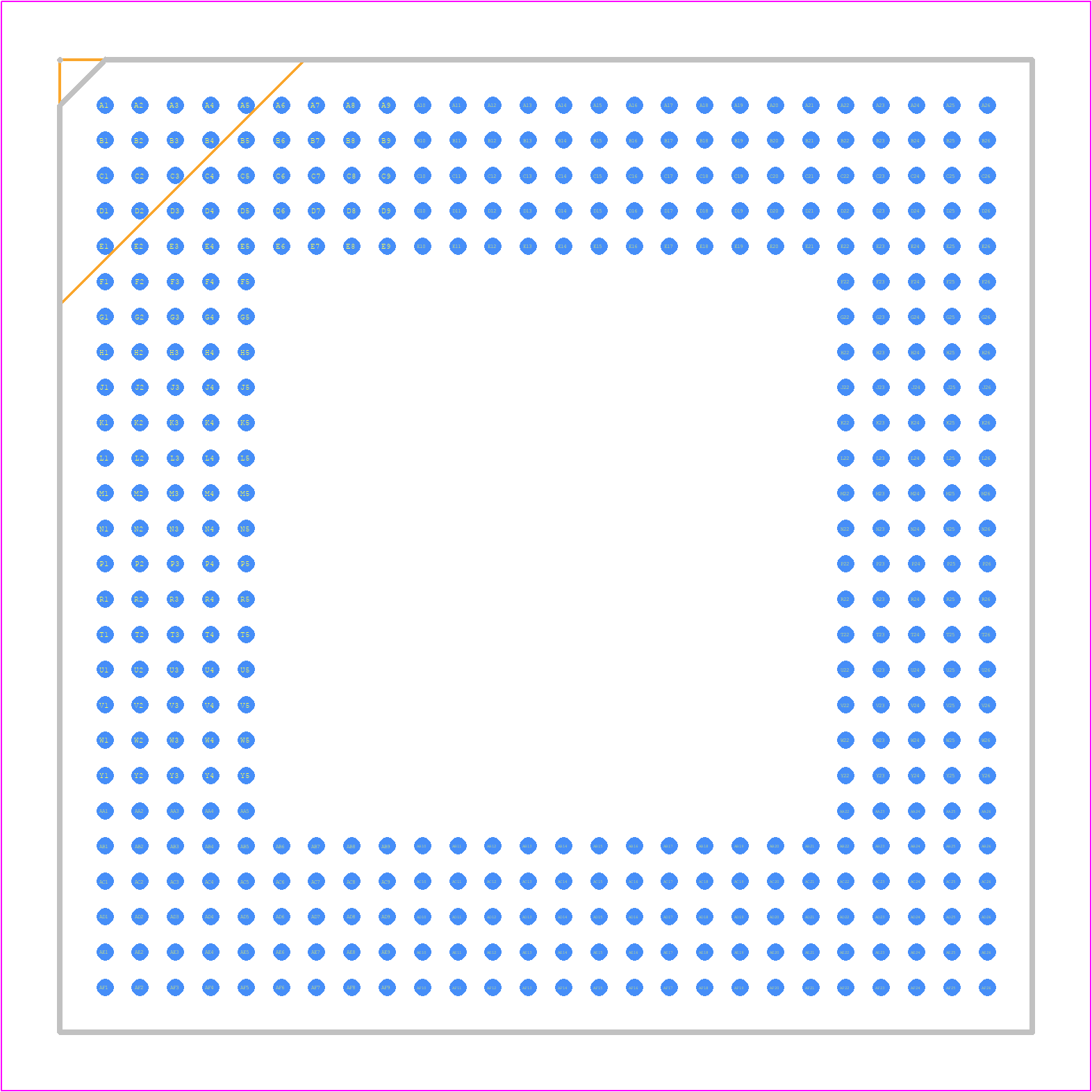

• Package Description:

  35 X 35 MM, 1.27 MM PITCH, MO-151BAT-1, HSBGA-420

• Pin Count:

  420

• Manufacturer Package Code:

  AEG420

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES 3.3V SUPPLY

• Address Bus Width:

  32

• Bus Compatibility:

  MPC825X; MPC826X; MPC827X; MPC8280; MPC74X; MPC75X; POWERPC 7400; POWERPC 740; POWERPC 750

• Clock Frequency-Max:

  100 MHz

• Data Transfer Rate-Max:

  0.0125 MBps

• External Data Bus Width:

  64

• JESD-30 Code:

  S-PBGA-B420

• JESD-609 Code:

  e1

• Length:

  35 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  420

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.46 mm

• Supply Current-Max:

  1050 mA

• Supply Voltage-Max:

  2.63 V

• Supply Voltage-Min:

  2.38 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  35 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, PCI
