The recommended land pattern for CAA572X7S2A336M640LJ can be found in the TDK Corporation's Capacitor Land Pattern Guidelines document, which provides detailed information on pad layout and spacing for optimal performance and reliability.
While the datasheet provides general information on the capacitor's frequency characteristics, TDK Corporation recommends consulting their High-Frequency Characteristics document, which provides more detailed information on the capacitor's performance in high-frequency applications, including impedance, ESR, and resonance characteristics.
According to TDK Corporation, the CAA572X7S2A336M640LJ has an MSL rating of 1, which means it can withstand a maximum of 30°C/60%RH for 192 hours without being exposed to moisture. This information is typically not included in the datasheet but can be obtained from TDK Corporation's reliability documentation or by contacting their technical support team.
While the datasheet does not explicitly state the capacitor's suitability for automotive applications, TDK Corporation's automotive-grade capacitors are designed to meet the stringent requirements of the automotive industry. The CAA572X7S2A336M640LJ meets the AEC-Q200 standard, which ensures its reliability and performance in harsh automotive environments. However, it is recommended to consult with TDK Corporation's technical support team to confirm the capacitor's suitability for specific automotive applications.
The CAA572X7S2A336M640LJ is a lead-free and RoHS-compliant component, as indicated by the 'LJ' suffix in the part number. This information is typically not included in the datasheet but can be obtained from TDK Corporation's environmental compliance documentation or by contacting their technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAA572X7S2A336M640LJ Overview

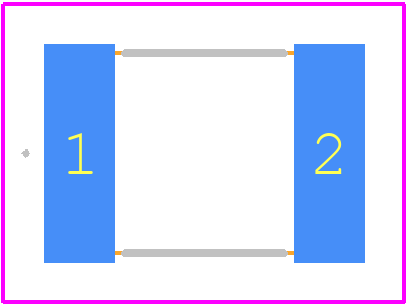

Use the download button to access the CAA572X7S2A336M640LJ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CAA57,
or try a keyword search, such as Ceramic Capacitors
