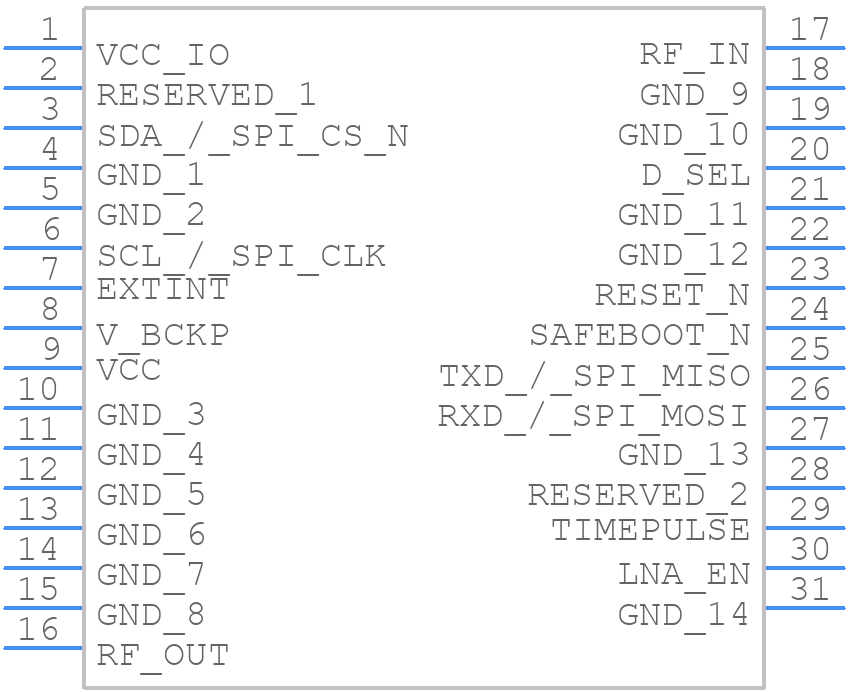

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CAM-M8Q-0-10
- Part Number CAM-M8Q-0-10
- Manufacturer u-blox
- Pin Count 31
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CAM-M8Q
- Released Date Aug 4, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CAM-M8Q-0-10 Details
-
Manufacturer Part Number:
CAM-M8Q-0-10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
u-blox AG
CAM-M8Q-0-10 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before applying the enable signal (EN pin). This ensures that the module is properly initialized.
-
The UART interface can be configured using the u-blox UBX-CFG-VALSET command. The module supports baud rates from 4800 to 921600 bps, and the default settings are 9600 bps, 8 data bits, 1 stop bit, and no parity.
-
The internal oscillator has an accuracy of ±10 ppm over the operating temperature range of -40°C to +85°C. This accuracy is sufficient for most GPS applications, but an external oscillator can be used for more precise timing requirements.
-
Yes, the module is designed to support hot-swap operation. However, it is recommended to ensure that the power supply is stable and that the module is properly reset after a hot-swap event.
-
The module has a built-in antenna detection feature that can be enabled using the u-blox UBX-CFG-ANTSWITCH command. The module can automatically switch between the internal and external antennas based on the signal strength.
Trust Checks
Expert Contribution
System Verified
Community Approved
CAM-M8Q-0-10 Overview
Use the download button to access the CAM-M8Q-0-10 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CAM-M,
or try a keyword search, such as RF/Microwave Antennas
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
