CAP1126-1-AP-TR - Microchip

Description: 6-Ch Touch Sensor 2 LED Drivers QFN16

Download CAP1126-1-AP-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

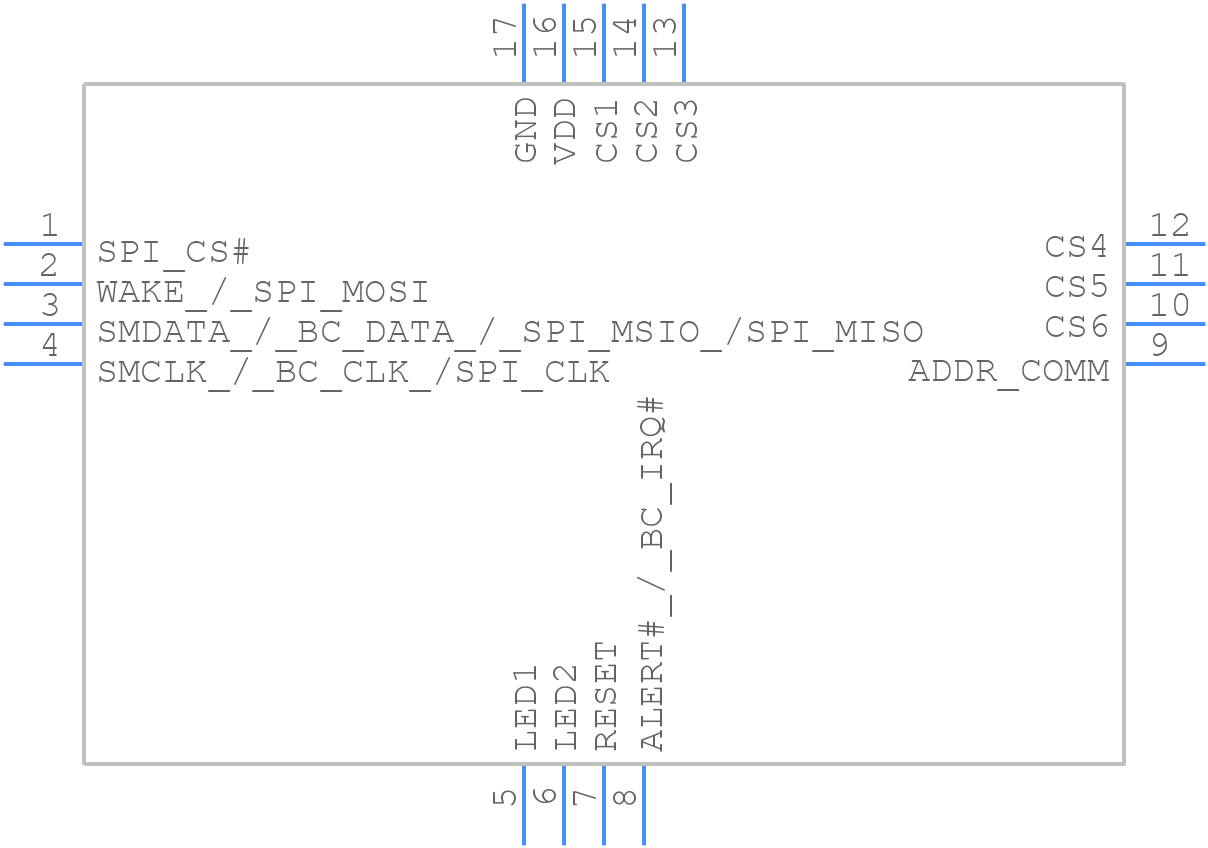

CAP1126-1-AP-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1126-1-AP-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16
click to zoom
3D Models
CAP1126-1-AP-TR - Microchip - 3D model - Quad Flat No-Lead - QFN16
click to zoom

CAP1126-1-AP-TR Details

  • Manufacturer Part Number:

    CAP1126-1-AP-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

  • fmax-Min:

    0.4 MHz

CAP1126-1-AP-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1126-1-AP-TR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a 10uF capacitor on the output. Use a low-ESR capacitor for the output capacitor.
  • The CAP1126-1-AP-TR can handle input voltages up to 6V, but it's recommended to operate within the specified range of 2.7V to 5.5V for optimal performance and reliability.
  • To troubleshoot issues, start by verifying the PCB layout and ensuring that the device is properly powered and decoupled. Check for noise and ripple on the input and output, and verify that the output capacitor is properly sized. Use an oscilloscope to analyze the output waveform and identify any anomalies.
  • The CAP1126-1-AP-TR is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures. Consult the datasheet for thermal derating information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1126-1-AP-TR Overview

Use the download button to access the CAP1126-1-AP-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAP11, or try a keyword search, such as Display Drivers
