CAP1133-1-AIA-TR - Microchip

Description: Microchip CAP1133-1-AIA-TR Proximity Sensor IC Capacitive, 3 → 3.6 V 10-Pin DFN

Download CAP1133-1-AIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

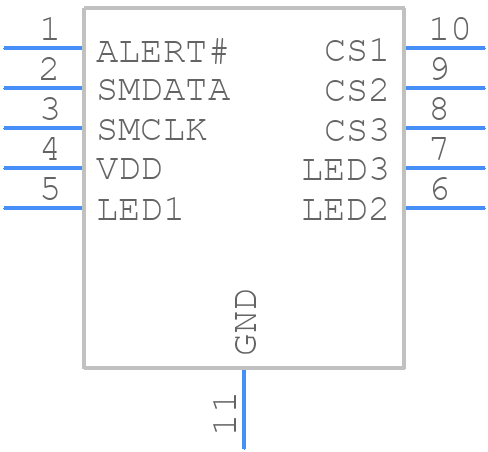

CAP1133-1-AIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1133-1-AIA-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-PIN DFN 3MM X 3MM
click to zoom
3D Models
CAP1133-1-AIA-TR - Microchip - 3D model - Small Outline No-lead - 10-PIN DFN 3MM X 3MM
click to zoom

CAP1133-1-AIA-TR Details

  • Manufacturer Part Number:

    CAP1133-1-AIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

CAP1133-1-AIA-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1133-1-AIA-TR involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a ferrite bead or a pi-filter to reduce noise.
  • The CAP1133-1-AIA-TR is rated for operation from -40°C to +125°C. However, it's essential to consider the specific application's thermal requirements and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues, start by verifying the power supply and decoupling. Check the PCB layout and ensure it meets the recommended guidelines. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance.
  • Yes, the CAP1133-1-AIA-TR is susceptible to electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep cables and wires short, and consider adding EMI filters or shielding to the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1133-1-AIA-TR Overview

Use the download button to access the CAP1133-1-AIA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAP11, or try a keyword search, such as Display Drivers
