CAP1166-1-BP-TR-DCC - Microchip

Description: IC TOUCH SENSOR 6CH 20QFN 4X4

Download CAP1166-1-BP-TR-DCC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

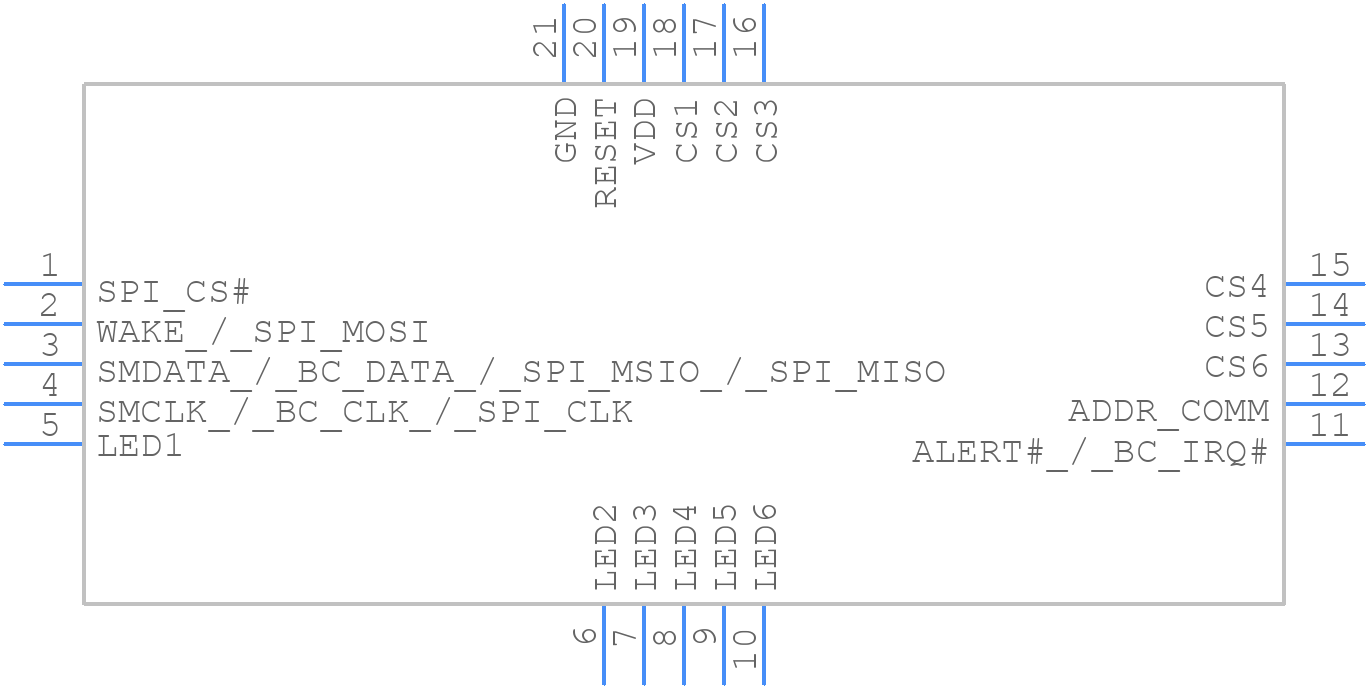

CAP1166-1-BP-TR-DCC - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1166-1-BP-TR-DCC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Pin QFN 4mm x 4mm
click to zoom
3D Models
CAP1166-1-BP-TR-DCC - Microchip - 3D model - Quad Flat No-Lead - 20-Pin QFN 4mm x 4mm
click to zoom

CAP1166-1-BP-TR-DCC Details

  • Manufacturer Part Number:

    CAP1166-1-BP-TR-DCC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

CAP1166-1-BP-TR-DCC Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the CAP1166-1-BP-TR-DCC evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The CAP1166-1-BP-TR-DCC is a highly configurable device, and the configuration depends on the specific application. Microchip provides a comprehensive application note (AN1531) that guides users through the configuration process, including setting up the sensor, adjusting sensitivity, and optimizing performance for various capacitive sensing applications.
  • The CAP1166-1-BP-TR-DCC is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications. However, it's essential to ensure proper thermal management and follow the recommended PCB layout guidelines to maintain optimal performance across the entire temperature range.
  • Yes, the CAP1166-1-BP-TR-DCC is a standalone capacitive touch controller that can be interfaced with a wide range of microcontrollers from various manufacturers. However, Microchip provides example code and libraries for their own microcontrollers, so additional development may be required for other microcontrollers.
  • Microchip provides a troubleshooting guide in the CAP1166-1-BP-TR-DCC datasheet, which covers common issues and their solutions. Additionally, the application note (AN1531) provides guidance on optimizing performance and resolving common issues. If further assistance is needed, Microchip's technical support team can be contacted for additional guidance.
