CAP1203-1-SN - Microchip

Description: CAP1203-1-SN Microchip Technology, CAP1203 Capacitive Touch Sensor Capacitive 8-Pin SOIC

Download CAP1203-1-SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

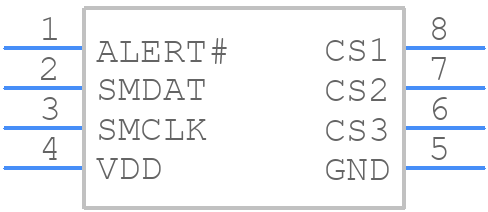

CAP1203-1-SN - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1203-1-SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
CAP1203-1-SN - Microchip - 3D model - Small Outline Packages - (SOIC)
click to zoom

CAP1203-1-SN Details

  • Manufacturer Part Number:

    CAP1203-1-SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    IT ALSO OPERATES AT 5V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

CAP1203-1-SN Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1203-1-SN involves keeping the sensor and the capacitive electrodes as close as possible to the PCB surface, using a solid ground plane, and minimizing the distance between the sensor and the electrodes.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings to match the specific application requirements. This can be done through the device's I2C interface using a microcontroller or a dedicated calibration tool.
  • The CAP1203-1-SN operates at a frequency of 100 kHz to 200 kHz, which is the typical frequency range for capacitive touch sensors.
  • Noise and interference can be minimized by using a good PCB layout, shielding the sensor and electrodes, and implementing noise filtering and averaging techniques in the firmware.
  • The CAP1203-1-SN can support up to 12 electrodes, but the actual number of electrodes that can be connected depends on the specific application requirements and the device's pin count.
