CAP1206-1-AIA-TR - Microchip

Description: MICROCHIP - CAP1206-1-AIA-TR - IC, SENSOR, CAP TOUCH, 6CH, VDFN-10

Download CAP1206-1-AIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

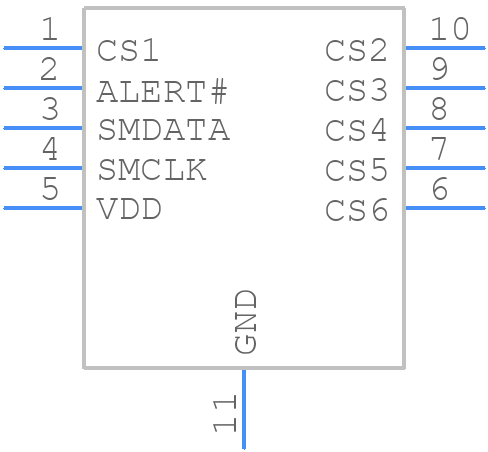

CAP1206-1-AIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1206-1-AIA-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - PAC1710-1-AIA-TR
click to zoom
3D Models
CAP1206-1-AIA-TR - Microchip - 3D model - Small Outline No-lead - PAC1710-1-AIA-TR
click to zoom

CAP1206-1-AIA-TR Details

  • Manufacturer Part Number:

    CAP1206-1-AIA-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    3 mm

  • Body Height:

    0.83 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.4-1.32V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    TS 16949

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CAP1206-1-AIA-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1206-1-AIA-TR involves keeping the capacitive sensor traces as short as possible, using a ground plane to reduce noise, and placing the sensor away from high-frequency components.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings to match the specific application requirements. This can be done through software or hardware adjustments, depending on the specific implementation.
  • The CAP1206-1-AIA-TR has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of applications.
  • The CAP1206-1-AIA-TR can be interfaced with a microcontroller using a digital output or an analog output, depending on the specific implementation. The datasheet provides guidelines for connecting the sensor to a microcontroller.
  • The CAP1206-1-AIA-TR has a low power consumption of typically 1.5 μA, making it suitable for battery-powered applications.
