CAP1208-1-A4-TR - Microchip

Description: 8-Channel Capacitive Touch Sensor

Download CAP1208-1-A4-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

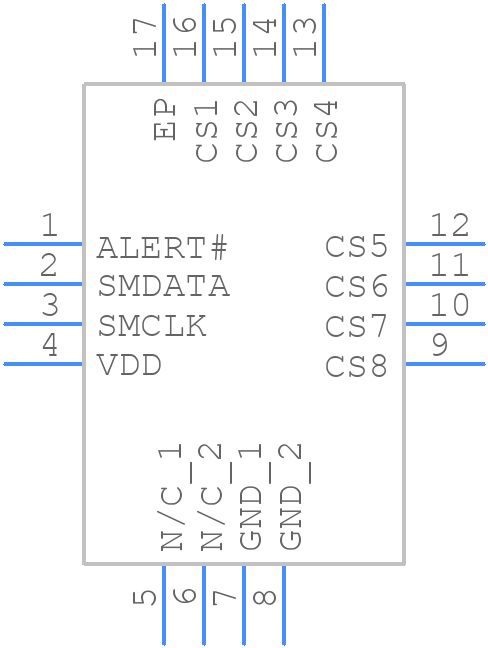

CAP1208-1-A4-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1208-1-A4-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CAP1208 16-PIN QFN 3MM X 3MM
click to zoom
3D Models
CAP1208-1-A4-TR - Microchip - 3D model - Quad Flat No-Lead - CAP1208 16-PIN QFN 3MM X 3MM
click to zoom

CAP1208-1-A4-TR Details

  • Manufacturer Part Number:

    CAP1208-1-A4-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    IT ALSO OPERATES AT 5V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

CAP1208-1-A4-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1208-1-A4-TR involves keeping the capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce noise and parasitic inductance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and consider using a calibration tool or software provided by Microchip Technology Inc. Additionally, consider the specific requirements of your application, such as the type of sensors used and the desired sensitivity.
  • The CAP1208-1-A4-TR has an operating temperature range of -40°C to +125°C, but it's recommended to check the specific temperature range for your application and ensure the device is properly heat-sinked if necessary.
  • To troubleshoot issues with the CAP1208-1-A4-TR, check the PCB layout, ensure proper power supply decoupling, and verify that the device is properly calibrated. Also, consider using a logic analyzer or oscilloscope to debug the issue.
  • While the CAP1208-1-A4-TR is designed for use with capacitive sensors, it may be possible to use it with other types of sensors or electrodes. However, this would require careful evaluation and testing to ensure compatibility and optimal performance.
