CAP1214-1-EZK-TR - Microchip

Description: Capacitive Touch Sensors 14 Channl Capacitive Touch Sensor 11 LED

Download CAP1214-1-EZK-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

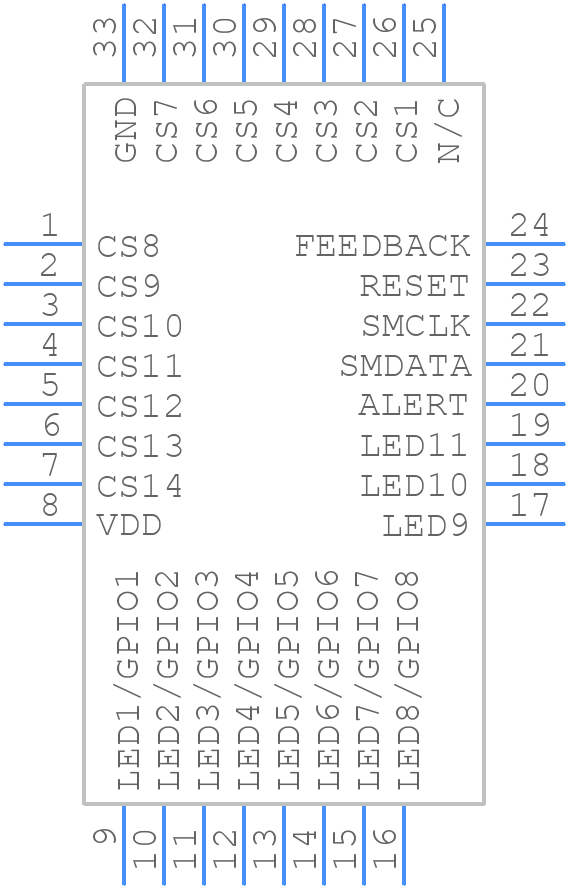

CAP1214-1-EZK-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1214-1-EZK-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CAP1214-1-EZK-TR
click to zoom
3D Models
CAP1214-1-EZK-TR - Microchip - 3D model - Quad Flat No-Lead - CAP1214-1-EZK-TR
click to zoom

CAP1214-1-EZK-TR Details

  • Manufacturer Part Number:

    CAP1214-1-EZK-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Channels:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

CAP1214-1-EZK-TR Frequently Asked Questions (FAQs)

  • It is recommended to place the CAP1214-1-EZK-TR close to the sensing electrodes, use a ground plane to shield the device, and keep the traces as short as possible to minimize noise and ensure optimal performance.
  • Calibration involves adjusting the sensitivity and threshold settings to optimize the device's performance for the specific application. This can be done through the device's registers or using Microchip's provided software tools.
  • The CAP1214-1-EZK-TR can detect capacitance changes in the range of 0-100 pF, making it suitable for a wide range of capacitive sensing applications.
  • The CAP1214-1-EZK-TR has built-in noise filtering and shielding to minimize the effects of electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, the device's differential sensing architecture helps to reject common-mode noise.
  • The CAP1214-1-EZK-TR has a typical active current consumption of 1.5 mA and a standby current consumption of 1 μA. This low power consumption makes it suitable for battery-powered devices and helps to minimize the overall system power budget.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1214-1-EZK-TR Overview

Use the download button to access the CAP1214-1-EZK-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAP12, or try a keyword search, such as Other Signal Circuits
