CAP1296-1-AIA-TR - Microchip

Description: MICROCHIP - CAP1296-1-AIA-TR - Touch Screen/Proximity Controller, 6-CH Capacitive, I2C, SMBus Interface, 3V or 5.5V Supply, DFN-10

Download CAP1296-1-AIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

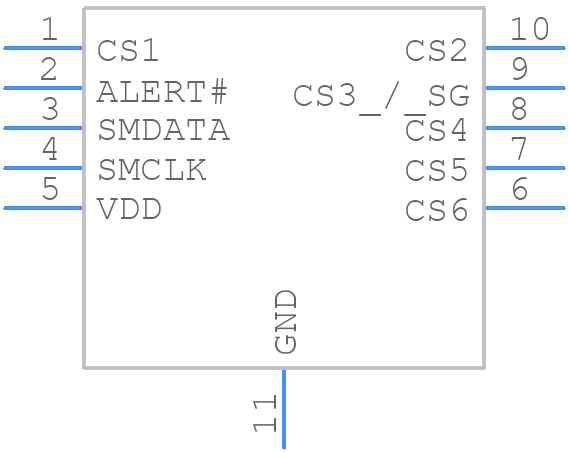

CAP1296-1-AIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1296-1-AIA-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-PIN DFN 3MM X 3MM
click to zoom
3D Models
CAP1296-1-AIA-TR - Microchip - 3D model - Small Outline No-lead - 10-PIN DFN 3MM X 3MM
click to zoom

CAP1296-1-AIA-TR Details

  • Manufacturer Part Number:

    CAP1296-1-AIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    IT ALSO OPERATES AT 5 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

CAP1296-1-AIA-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1296-1-AIA-TR involves keeping the capacitive sensor traces short and away from noise sources, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings to suit the specific application. This can be done through software or using the device's built-in calibration registers. Refer to the application note or user manual for specific calibration procedures.
  • The CAP1296-1-AIA-TR is rated for operation between -40°C and 85°C. However, it's essential to consider the specific application's temperature requirements and ensure the device is operated within its recommended temperature range.
  • To minimize EMI and RFI, use proper shielding, keep the sensor and microcontroller away from noise sources, and use a low-pass filter or shielding on the sensor traces. Additionally, consider using a Faraday cage or EMI-absorbing materials in the design.
  • A 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, placed close to the device's power pins, are recommended for power supply decoupling. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1296-1-AIA-TR Overview

Use the download button to access the CAP1296-1-AIA-TR schematic symbol, PCB footprint, and 3D model.
