CAP1298-1-A4-TR - Microchip

Description: MICROCHIP - CAP1298-1-A4-TR - IC, SENSOR, CAP TOUCH, 8CH, QFN-16

Download CAP1298-1-A4-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

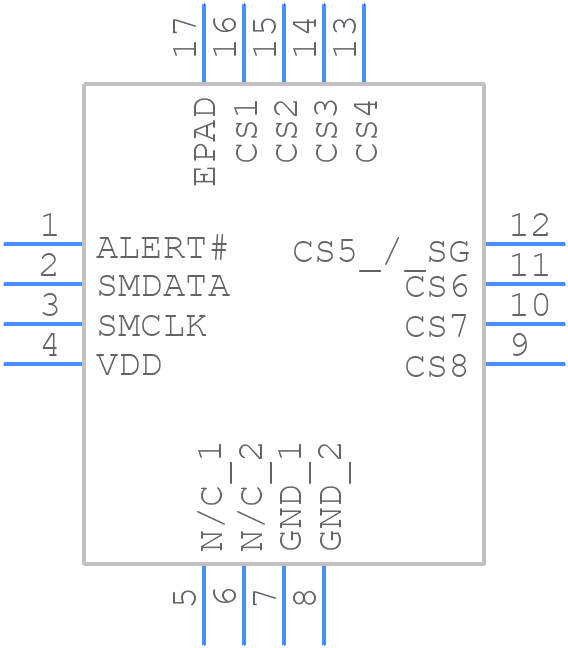

CAP1298-1-A4-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1298-1-A4-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Pin (3mm x 3mm) QFN-1
click to zoom
3D Models
CAP1298-1-A4-TR - Microchip - 3D model - Quad Flat No-Lead - 16-Pin (3mm x 3mm) QFN-1
click to zoom

CAP1298-1-A4-TR Details

  • Manufacturer Part Number:

    CAP1298-1-A4-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    IT ALSO OPERATES AT 5V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

CAP1298-1-A4-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1298-1-A4-TR involves keeping the capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • Ensure a stable power supply, use a 0.1uF decoupling capacitor between VDD and GND, and add a 10uF bulk capacitor between VDD and GND for optimal performance.
  • The CAP1298-1-A4-TR operates within a temperature range of -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • Use a logic analyzer or oscilloscope to monitor the signals, check the power supply and decoupling, and verify the PCB layout and component placement to identify and resolve issues.
  • While the CAP1298-1-A4-TR is a high-quality component, it's essential to consult with Microchip Technology Inc. and conduct thorough testing and validation to ensure the component meets the specific requirements of your high-reliability or safety-critical application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1298-1-A4-TR Overview

Use the download button to access the CAP1298-1-A4-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAP12, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
