CAS6-NP - LEM

Description: Current Sensor 6A 1 Channel Flux Gate, Closed Loop Bidirectional Module

Download CAS6-NP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

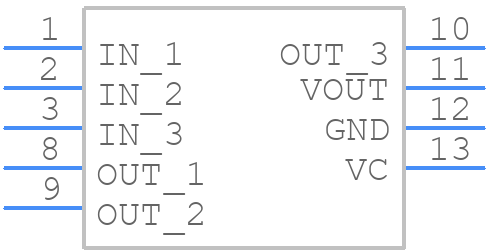

CAS6-NP - LEM - PCB symbol
click to zoom
PCB Footprints
CAS6-NP - LEM PCB footprint - Other - Other - CAS6-NP-1
click to zoom
3D Models
CAS6-NP - LEM - 3D model - Other - CAS6-NP-1
click to zoom

CAS6-NP Details

  • Manufacturer Part Number:

    CAS6-NP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-13/10

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    LEM Holdings SSA

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    X-XXSS-P10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    SPECIAL SHAPE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    10

CAS6-NP Frequently Asked Questions (FAQs)

  • A symmetrical layout with the sensor centered between the primary conductors, and a solid ground plane underneath the sensor, is recommended for optimal performance and minimal noise pickup.
  • Calibration is not required, as the CAS6-NP is a factory-calibrated device. However, it's essential to follow the recommended installation and wiring guidelines to ensure accurate measurements.
  • The CAS6-NP is rated for operation up to 125°C (257°F), but it's recommended to keep the temperature below 100°C (212°F) for optimal performance and longevity.
  • Yes, the CAS6-NP is designed to withstand vibrations up to 10g (98m/s²) and is suitable for use in industrial and transportation applications.
  • Follow the recommended installation guidelines, use a shielded cable for the output signal, and ensure the sensor is properly grounded to minimize electromagnetic interference (EMI) and ensure EMC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAS6-NP Overview

Use the download button to access the CAS6-NP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAS6-, or try a keyword search, such as Other Signal Circuits
