CAT16-000J8LF - Bourns

Description: Resistor Networks & Arrays 0 ohm

Download CAT16-000J8LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

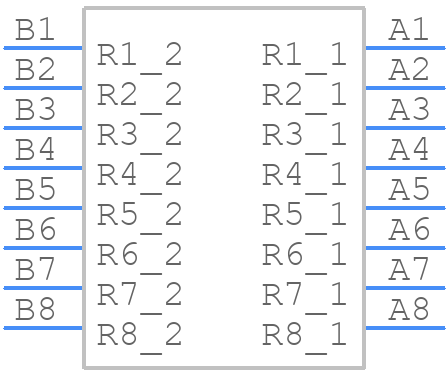

CAT16-000J8LF - Bourns - PCB symbol
click to zoom
PCB Footprints
CAT16-000J8LF - Bourns PCB footprint - Other - Other - CAT16-000J8LF-2
click to zoom
3D Models
CAT16-000J8LF - Bourns - 3D model - Other - CAT16-000J8LF-2
click to zoom

CAT16-000J8LF Details

  • Manufacturer Part Number:

    CAT16-000J8LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT, 0625

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Construction:

    Chip

  • Element Power Dissipation:

    0.062 W

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    JUMPER

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.4 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    1.6 mm

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Temperature:

    70 °C

  • Resistance:

    0.05 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    0625

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WRAPAROUND

CAT16-000J8LF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the CAT16-000J8LF is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner. The pad should be centered on the component and have a 0.3 mm clearance around the perimeter.
  • To ensure reliable soldering of the CAT16-000J8LF, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the CAT16-000J8LF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the CAT16-000J8LF is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
  • Yes, the CAT16-000J8LF is compatible with lead-free soldering processes. The component is RoHS-compliant and can be soldered using lead-free solder alloys.
