Part Image

CAT24C04WI-G - onsemi

Description: EEPROM (512x8) 4K 1.8-5.5

Download CAT24C04WI-G Model

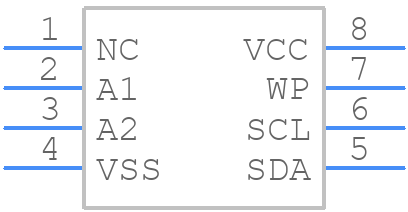

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CAT24C04WI-G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8, 150 mils
click to zoom
3D Models
CAT24C04WI-G - onsemi  - 3D model - Small Outline Packages - SOIC 8, 150 mils
click to zoom

CAT24C04WI-G Details

  • Manufacturer Part Number:

    CAT24C04WI-G

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751BD

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.1

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    100

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDMR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAT24C04WI-G Overview

Use the download button to access the CAT24C04WI-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT24, or try a keyword search, such as EEPROMs

Parts related to CAT24C04WI-G

Showing 0 results

CAT24C04WI-G Alternates

Showing results

Image Part Number Model
Part Image CAT24C04WI-GT3 onsemi

EEPROM Serial 4-Kb I2C, SOIC 8, 150 mils, 3000-REEL

Part Image AT24C04AN-10SJ-2.7 Atmel Corporation

EEPROM, 512X8, Serial, CMOS, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8

Part Image R1EX24004ASAS0A Renesas Electronics Corporation

512X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 X 4.89 MM, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-8

Part Image AT24C04AN-10SU-2.7 Atmel Corporation

EEPROM, 512X8, Serial, CMOS, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8

Part Image CAT24C04WI onsemi

512X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, LEAD AND HALOGEN FREE, MS-012, SOIC-8

For a full list of alternate parts for CAT24C04WI-G, check out Findchips.com
