Part Image

CAT24C512C8UTR - onsemi

Description: EEPROM 512KB I2C SER EEPROM CSP

Download CAT24C512C8UTR Model

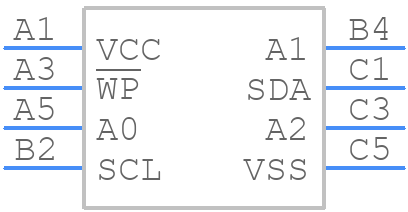

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CAT24C512C8UTR - onsemi PCB footprint - Other - Other - CAT24C512C8UTR-2
click to zoom
3D Models
CAT24C512C8UTR - onsemi  - 3D model - Other - CAT24C512C8UTR-2
click to zoom

CAT24C512C8UTR Details

  • Manufacturer Part Number:

    CAT24C512C8UTR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-8

  • Manufacturer Package Code:

    567WK

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Additional Feature:

    IT ALSO OPERATES AT FREQUENCY 0.4 MHZ AT 1.8 TO 5.5 V SUPPLY VOLTAGE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e2

  • Length:

    1.65 mm

  • Memory Density:

    524288 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Serial Bus Type:

    I2C

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.39 mm

  • Write Cycle Time-Max (tWC):

    5 ms

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAT24C512C8UTR Overview

Use the download button to access the CAT24C512C8UTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT24, or try a keyword search, such as EEPROMs
