Description:20 MHz (5 V) SPI Compatible; 1.8 V to 5.5 V Supply Voltage Range; SPI Modes (0,0 and 1,1); 16-byte Page Write Buffer; Self-timed Write Cycle; Hardware and Software Protection; Block Write Protection - Protect 1/4, 1/2 or Entire EEPROM Array; Low Power CMOS Tchnology; 8-lead SOIC and TSSOP and 8-pad UDFN packages; Industrial Temperature Range; 100 year Data Retention; 1,000,000 Program/Erase Cycles; These Devices are Pb-Free, Halogen Free/BFR Free and RoHS Compliant
A good PCB layout for the CAT25010HU4I-GT3 involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and electromagnetic interference (EMI).
To ensure proper power-up and initialization of the CAT25010HU4I-GT3, it's recommended to follow a power-up sequence that includes a slow ramp-up of the power supply voltage (VCC) to the device, followed by a brief delay to allow the internal voltage regulator to stabilize. Additionally, the device should be reset by pulling the RESET pin low for a minimum of 10ms to ensure proper initialization.
The CAT25010HU4I-GT3 has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation in high-temperature environments, it's recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow proper PCB design guidelines to minimize thermal resistance. Additionally, the device should be operated within the recommended operating temperature range of -40°C to 125°C.
To troubleshoot issues with the CAT25010HU4I-GT3, it's recommended to follow a systematic approach that includes reviewing the power-up sequence, checking the voltage supply and clock signals, and verifying the integrity of the data and address buses. Additionally, using debugging tools such as logic analyzers or oscilloscopes can help identify issues related to signal integrity or timing.
The CAT25010HU4I-GT3 has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage from electrostatic discharge. To ensure reliable operation in harsh environments, it's recommended to follow proper PCB design guidelines, use ESD-protective packaging and handling procedures, and consider adding external ESD protection devices if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT25010HU4I-GT3 Overview

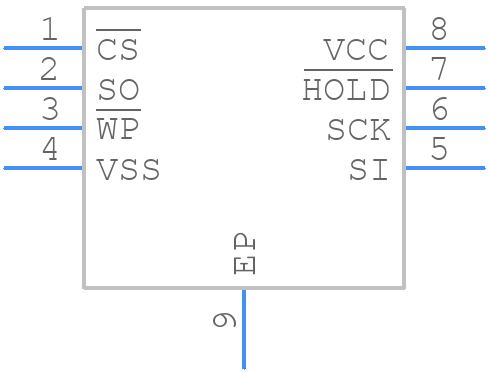

Use the download button to access the CAT25010HU4I-GT3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT25,
or try a keyword search, such as EEPROMs
