Description:20 MHz (5 V) SPI Compatible; 1.8 V to 5.5 V Supply Voltage Range; SPI Modes (0,0 & 1,1); 16-byte Page Write Buffer; Self-timed Write Cycle; Hardware and Software Protection; Block Write Protection - Protect 1/4, 1/2 or Entire EEPROM Array; Low Power CMOS Technology; 1,000,000 Program/Erase Cycles; 8-lead SOIC and TSSOP, 8-pad UDFN and TDFN packages; 100 Year Data Retention; Industrial Temperature Range; These Devices are Pb-Free, Halogen Free/BFR Free, and RoHS Compliant
A good PCB layout for the CAT25040YI-GT3 involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces connected to the clock and data lines. Additionally, it's recommended to use a 10uF capacitor between VCC and GND to filter out noise.
To ensure data integrity, it's essential to follow a consistent write cycle, use a valid clock signal, and ensure that the WP pin is properly configured. Additionally, implementing error detection and correction mechanisms, such as CRC or checksum, can help detect and correct data corruption.
The maximum operating frequency of the CAT25040YI-GT3 is 10 MHz. Operating the device at higher frequencies can increase power consumption, so it's essential to optimize the clock frequency based on the specific application requirements to minimize power consumption.
The Hold pin should be tied to VCC or GND to prevent accidental writes, and the WP pin should be configured according to the specific application requirements to prevent data corruption. It's essential to follow the recommended configuration and handling of these pins to ensure reliable operation.
The CAT25040YI-GT3 has a maximum operating temperature of 125°C. To ensure reliable operation in high-temperature environments, it's essential to provide adequate heat dissipation, use a thermally conductive PCB material, and consider using thermal interface materials or heat sinks if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT25040YI-GT3 Overview

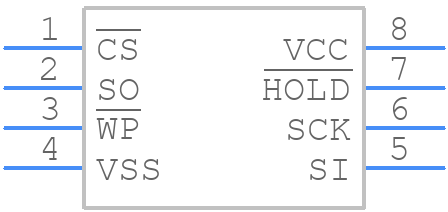

Use the download button to access the CAT25040YI-GT3 schematic symbol, PCB footprint, and 3D model.
