CAT25128YI-GT3 - onsemi

Description: ON Semiconductor CAT25128YI-GT3 EEPROM Memory, 128kbit, 140ns, 1.8 → 5.5 V 8-Pin TSSOP

Download ECAD Model
Schematic

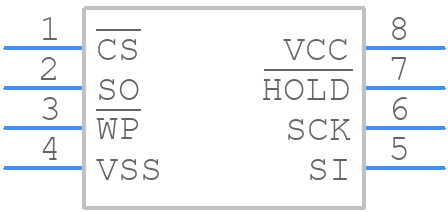

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CAT25128YI-GT3 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8
click to zoom

3D Models

CAT25128YI-GT3 - onsemi  - 3D model - Small Outline Packages - TSSOP8
click to zoom

CAT25128YI-GT3 Details

  • Manufacturer Part Number:

    CAT25128YI-GT3

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, MO-153, TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    948AL

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • Risk Rank:

    0.82

  • Samacsys Modified On:

    2020-07-18 06:25:38

  • YTEOL:

    6.4

  • Additional Feature:

    100 YEAR DATA RETENTION

  • Clock Frequency-Max (fCLK):

    5 MHz

  • Data Retention Time-Min:

    100

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Memory Density:

    131072 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16384 words

  • Number of Words Code:

    16000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Subcategory:

    EEPROMs

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE/SOFTWARE
