CAT28C16ALI-12 - onsemi

CAT28C16ALI-12 Details

• Manufacturer Part Number:

  CAT28C16ALI-12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

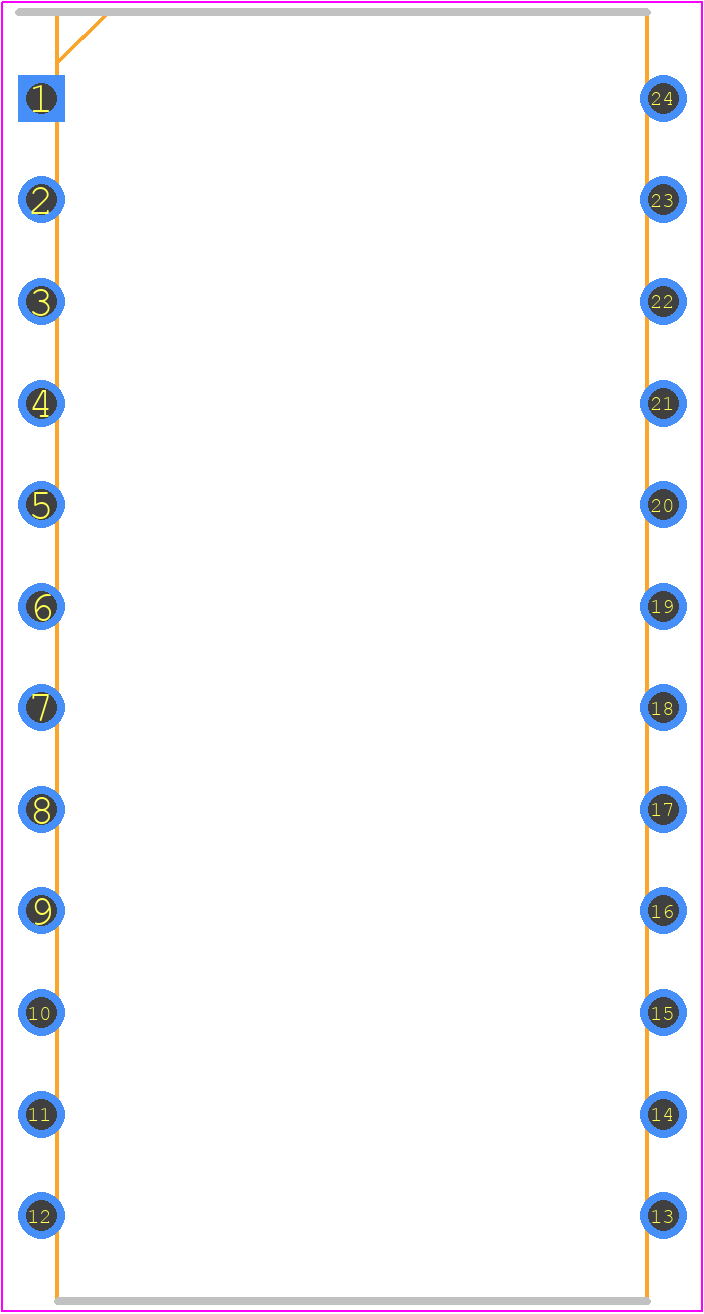

• Part Package Code:

  DIP

• Package Description:

  DIP, DIP24,.6

• Pin Count:

  24

• Reach Compliance Code:

  Unknown

• Manufacturer:

  onsemi

• YTEOL:

  0

• Access Time-Max:

  120 ns

• Command User Interface:

  NO

• Data Polling:

  YES

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e3

• Length:

  31.875 mm

• Memory Density:

  16384 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Power Supplies:

  5 V

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Standby Current-Max:

  0.0001 A

• Subcategory:

  EEPROMs

• Supply Current-Max:

  0.035 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Toggle Bit:

  NO

• Width:

  15.24 mm

• Write Cycle Time-Max (tWC):

  5 ms
