A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the package.
Use a heat sink, ensure good airflow, and consider derating the device's power handling at high temperatures. Also, ensure the PCB is designed to handle the thermal stresses.
The CAT3604VHV4-GT2 has built-in ESD protection diodes. However, it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging. For latch-up prevention, ensure the device is powered up and down slowly, and use a power-on reset circuit if necessary.
Yes, the CAT3604VHV4-GT2 is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions, and consider additional testing and validation for your specific use case.
Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs. Check for voltage drops, current spikes, and thermal issues. Consult the datasheet and application notes for troubleshooting guidelines and potential causes of issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT3604VHV4-GT2 Overview

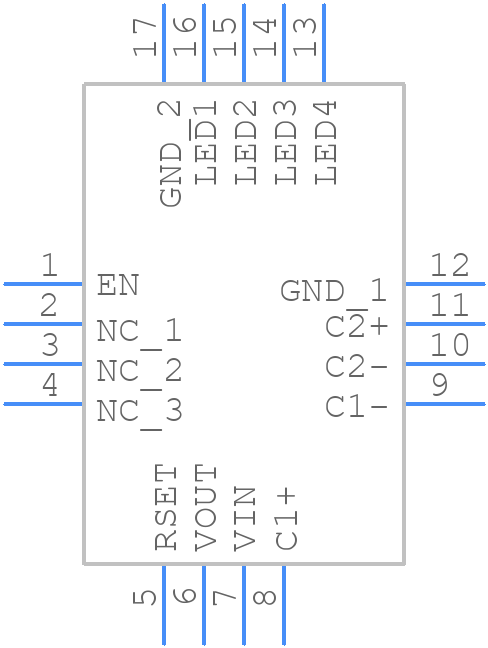

Use the download button to access the CAT3604VHV4-GT2 schematic symbol, PCB footprint, and 3D model.
