The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and provide adequate airflow or heat sinking to keep the junction temperature below the maximum rating.
The CAT3644HV3-T2 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to high-voltage transients or electrostatic discharges.
The CAT3644HV3-T2 is an automotive-qualified device, but it's essential to ensure that the specific application meets the AEC-Q100 qualification requirements. Additionally, consult the onsemi automotive catalog and relevant industry standards for specific requirements and guidelines.
For PCB assembly and rework, follow the recommended soldering temperature and time profiles, use a suitable solder paste, and avoid excessive heat or mechanical stress. It's also important to use a rework station with a controlled temperature profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT3644HV3-T2 Overview

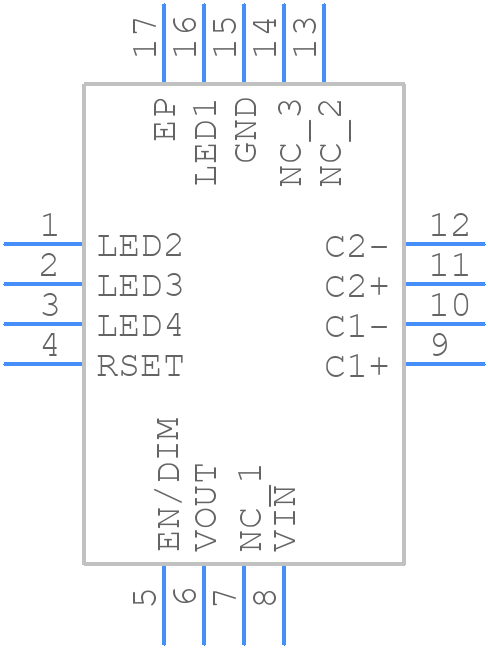

Use the download button to access the CAT3644HV3-T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT36,
or try a keyword search, such as Display Drivers
