A recommended PCB layout for the CAT3661HV3-GT2 involves placing the device near a thermal pad or heat sink, using a 2-layer or 4-layer board, and keeping the thermal vias as close to the device as possible. Additionally, using a solid ground plane and minimizing the distance between the device and the thermal pad can help to reduce thermal resistance.
To ensure the CAT3661HV3-GT2 is properly biased, connect the EN pin to a voltage source between 2.7V and 5.5V, and the VIN pin to a voltage source between 4.5V and 36V. Also, ensure the input voltage is stable and within the recommended range, and that the output voltage is set correctly using the FB pin.
When selecting an output capacitor for the CAT3661HV3-GT2, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a capacitance value between 10uF and 22uF and a voltage rating above the output voltage is recommended.
To troubleshoot issues with the CAT3661HV3-GT2, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly biased and that the output capacitor is suitable. Check for thermal issues by ensuring good thermal contact between the device and the heat sink, and verify that the device is not overheating. Consult the datasheet and application notes for more detailed troubleshooting guidance.
The CAT3661HV3-GT2 is a high-voltage, high-current buck converter with a wide input voltage range and high efficiency. Compared to other similar devices from onsemi, the CAT3661HV3-GT2 has a higher input voltage range (up to 36V) and a higher output current capability (up to 3A). It also has a smaller package size and lower quiescent current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT3661HV3-GT2 Overview

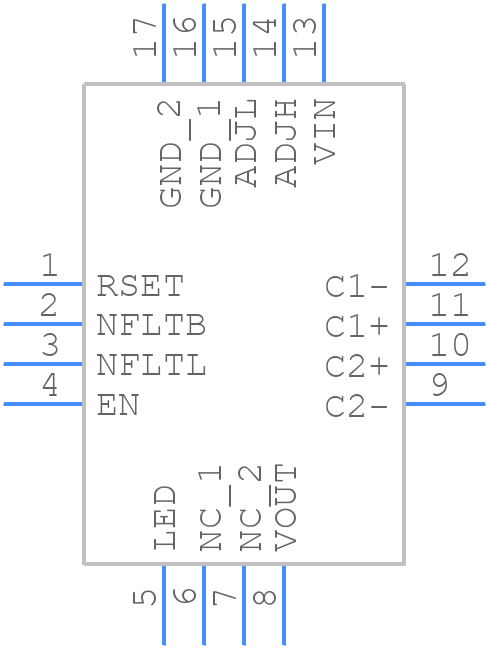

Use the download button to access the CAT3661HV3-GT2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT36,
or try a keyword search, such as Display Drivers
