CAT5113LI-10-G footprint, schematic symbol and 3D model by onsemi

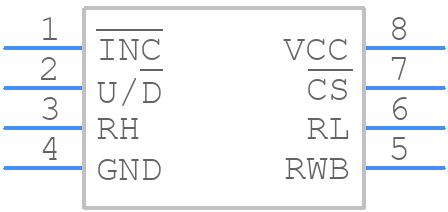

Symbol

click to zoom

PCB Footprints

CAT5113LI-10-G - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8 300 mils CASE 646AA ISSUE A

click to zoom

3D Models

CAT5113LI-10-G - onsemi - 3D model - Dual-In-Line Packages - PDIP-8 300 mils CASE 646AA ISSUE A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CAT5113LI-10-G
Part Number CAT5113LI-10-G
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PDIP-8 300 mils CASE 646AA ISSUE A
Released Date Jul 30, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CAT5113LI-10-G Details

Manufacturer Part Number:
CAT5113LI-10-G
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
DIP-8
Pin Count:
8
Manufacturer Package Code:
646AA
HTS Code:
8542.39.00.60
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
NONVOLATILE MEMORY
Control Interface:
INCREMENT/DECREMENT
Converter Type:
DIGITAL POTENTIOMETER
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e4
Length:
9.27 mm
Number of Functions:
1
Number of Positions:
100
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Resistance Law:
LINEAR
Resistance Tolerance-Max:
20%
Resistor Terminal Voltage-Max:
6 V
Seated Height-Max:
5.33 mm
Supply Voltage-Nom:
3 V
Surface Mount:
NO
Temperature Coefficient-Nom:
300 ppm/°C
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Resistance-Nom:
10000 Ω
Width:
7.62 mm

CAT5113LI-10-G Frequently Asked Questions (FAQs)

A good PCB layout for the CAT5113LI-10-G should include a solid ground plane, short traces, and minimal noise coupling. It's also recommended to place the device close to the power source and use a 10uF capacitor between VCC and GND to filter out noise.
The CAT5113LI-10-G requires a power-on reset (POR) to ensure proper initialization. A 10kΩ pull-up resistor on the SCL line and a 10kΩ pull-down resistor on the SDA line are recommended. Also, make sure to power up the device with a stable voltage source and wait for at least 1ms before sending any I2C commands.
The CAT5113LI-10-G supports I2C frequencies up to 400kHz. However, it's recommended to operate at a lower frequency (e.g., 100kHz) to ensure reliable communication and minimize noise susceptibility.
Implement a retry mechanism in your I2C driver to handle errors such as bus collisions, timeouts, or data corruption. You can also use the CAT5113LI-10-G's built-in error detection mechanisms, such as the BUSY flag, to detect and recover from errors.
Use the I2C interface to write and read data to/from the EEPROM. Make sure to follow the device's write cycle endurance and data retention specifications. It's also recommended to use a checksum or CRC to ensure data integrity and detect any errors during data transfer.

Trust Checks

Community Provided

System Verified

Community Approved

CAT5113LI-10-G Overview

Use the download button to access the CAT5113LI-10-G schematic symbol, PCB footprint, and 3D model.
