CAT5132ZI-50-GT3 footprint, schematic symbol and 3D model by onsemi

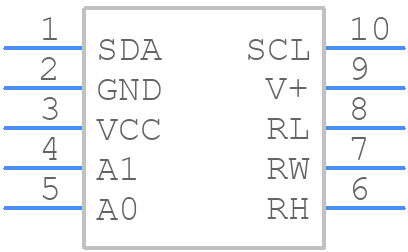

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CAT5132ZI-50-GT3
Part Number CAT5132ZI-50-GT3
Manufacturer onsemi
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP10 3X3 CASE 846AE
Released Date May 3, 2018
Last Modified Date Sep 19, 2024 2:45 PM UTC
Pinout / Pin List Click Here (Member Only)

CAT5132ZI-50-GT3 Details

Manufacturer Part Number:
CAT5132ZI-50-GT3
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
MSOP 10, 3x3
Package Description:
MSOP-10
Pin Count:
10
Manufacturer Package Code:
846AG
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
NONVOLATILE MEMORY
Control Interface:
INCREMENT/DECREMENT
Converter Type:
DIGITAL POTENTIOMETER
JESD-30 Code:
S-PDSO-G10
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Positions:
128
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP10,.19,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Resistance Law:
LINEAR
Resistance Tolerance-Max:
20%
Resistor Terminal Voltage-Max:
16 V
Seated Height-Max:
1.1 mm
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Technology:
CMOS
Temperature Coefficient-Nom:
300 ppm/°C
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Resistance-Nom:
50000 Ω
Width:
3 mm

CAT5132ZI-50-GT3 Frequently Asked Questions (FAQs)

A recommended PCB layout for the CAT5132ZI-50-GT3 includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor (e.g., 10 kΩ) and a capacitor (e.g., 100 nF) in series. This ensures a stable output voltage and prevents oscillations.
The CAT5132ZI-50-GT3 can drive a maximum capacitive load of 10 μF. Exceeding this limit may cause instability or oscillations.
Use a voltage supervisor or a reset IC to monitor the input voltage and reset the CAT5132ZI-50-GT3 if the voltage falls outside the recommended operating range (4.5 V to 5.5 V). Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
A recommended input capacitor value for the CAT5132ZI-50-GT3 is 1 μF to 10 μF, depending on the input voltage ripple and noise requirements. A larger capacitor value can help reduce output voltage ripple and improve overall system stability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CAT5132ZI-50-GT3 Overview

Use the download button to access the CAT5132ZI-50-GT3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CAT51, or try a keyword search, such as Digital Potentiometers
