A good PCB layout for the CAT5191TBE-50GT3 should prioritize thermal management, minimize noise coupling, and ensure good power supply decoupling. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Place the device near the power source, and use a thermal pad or heat sink to dissipate heat.
To ensure reliable operation over the full temperature range (-40°C to 125°C), follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection if necessary.
Operating the CAT5191TBE-50GT3 at a lower input voltage than 5V may reduce the output current capability and increase the dropout voltage. Operating at a higher input voltage may increase power dissipation and reduce the device's reliability. It is recommended to operate the device within the specified input voltage range for optimal performance and reliability.
To ensure proper operation, power up the CAT5191TBE-50GT3 in the following sequence: VIN, followed by EN (enable) and then VOUT. When powering down, reverse the sequence: VOUT, followed by EN, and finally VIN. This sequencing helps prevent unwanted voltage transients and ensures a clean shutdown.
To minimize EMI and RFI, use a good PCB layout with proper grounding, decoupling, and shielding. Place the device away from noise sources, and use a ferrite bead or common-mode choke to filter the input voltage. Additionally, consider using a shielded inductor and a low-ESR output capacitor to reduce radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT5191TBE-50GT3 Overview

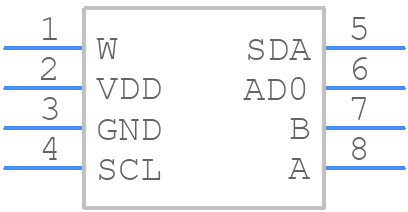

Use the download button to access the CAT5191TBE-50GT3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT51,
or try a keyword search, such as Digital Potentiometers
