- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CAT82048
- Part Number CAT82048
- Manufacturer Daico Industries
- Pin Count 24
- Part Category Attenuator or Isolator
- Package Category Other

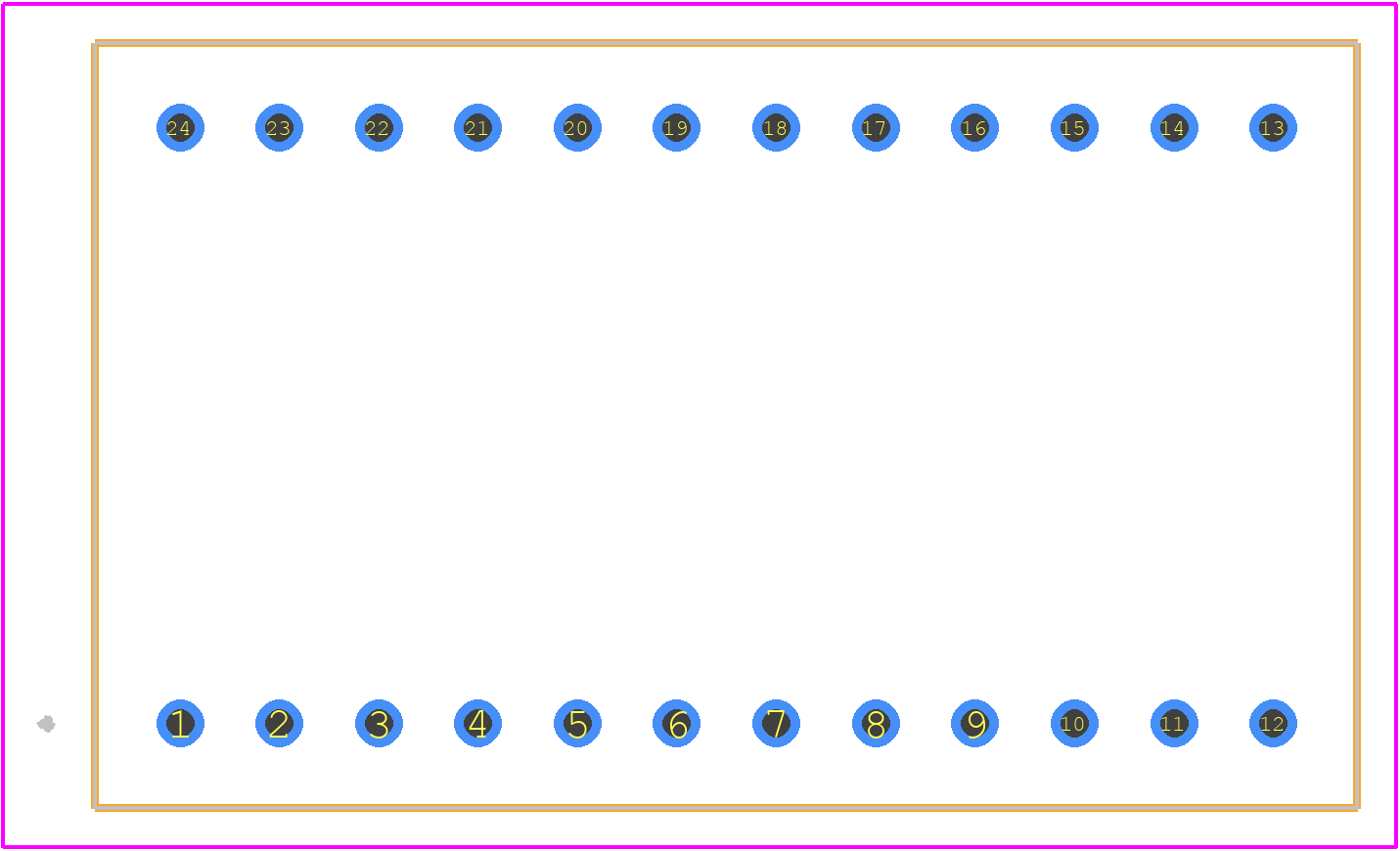

- Footprint Name Other - CAT82048-2
- Released Date Jul 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CAT82048 Details
-
Manufacturer Part Number:
CAT82048
-
Part Life Cycle Code:
Contact Manufacturer
-
Manufacturer:
DAICO Industries Inc
-
Attenuation-Nom:
63.75 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
23.01 dBm
-
Insertion Loss-Max:
5.9 dB
-
Operating Frequency-Max:
480 MHz
-
Operating Frequency-Min:
440 MHz
-
Operating Temperature-Max:
75 °C
Trust Checks
Expert Contribution
System Verified
Community Approved
CAT82048 Overview

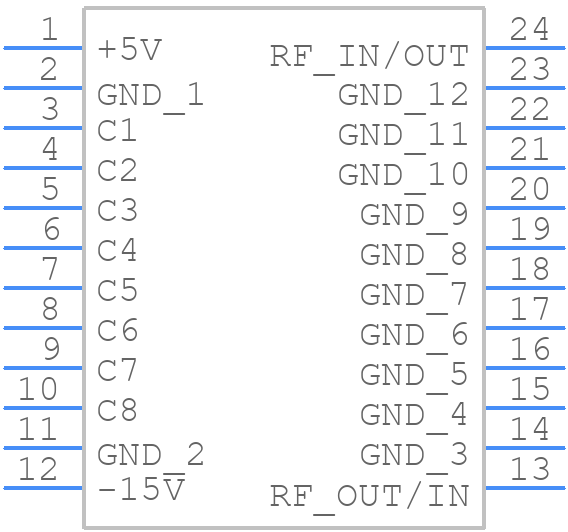

Use the download button to access the CAT82048 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT82,
or try a keyword search, such as RF/Microwave Attenuators
