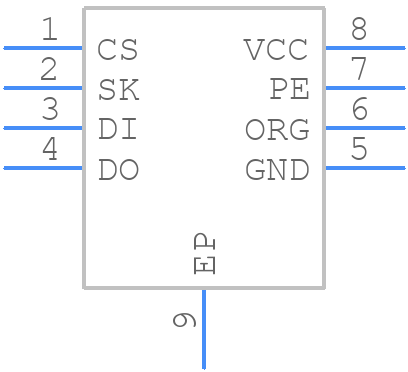

CAT93C86BHU4I-GT3 - onsemi

CAT93C86BHU4I-GT3 Details

• Manufacturer Part Number:

  CAT93C86BHU4I-GT3

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  UDFN8, 2x3, 0.5P, Extended Pad

• Package Description:

  UDFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  517AZ

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  onsemi

• YTEOL:

  6.2

• Alternate Memory Width:

  8

• Clock Frequency-Max (fCLK):

  4 MHz

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Memory Density:

  16384 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  16

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  1024 words

• Number of Words Code:

  1000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1KX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.55 mm

• Serial Bus Type:

  MICROWIRE

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.8 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
