CAT9532WI - onsemi

Description: 16-bit Programmable LED Dimmer with I2C Interface

Download CAT9532WI Model

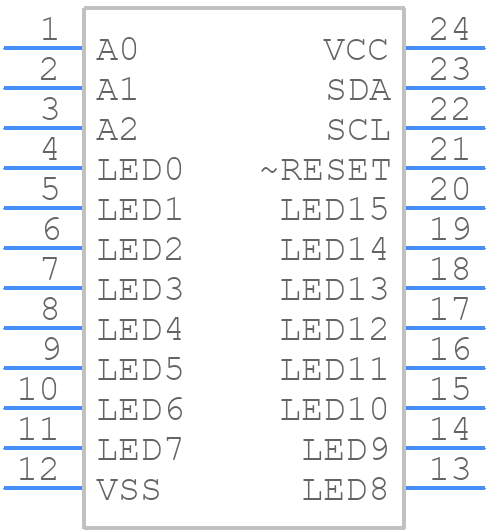

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CAT9532WI - onsemi PCB footprint - Other - Other - SOIC127P1031X265-24N
click to zoom

CAT9532WI Details

  • Manufacturer Part Number:

    CAT9532WI

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, HALOGEN FREE AND ROHS COMPLIANT, MS-013, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    751BK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.47 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

CAT9532WI Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the CAT9532WI is to keep the input and output traces separate, use a solid ground plane, and minimize the length of the traces. Additionally, it's recommended to use a 10nF decoupling capacitor between VCC and GND, and to place the device as close as possible to the battery or power source.
  • To ensure proper power-up and initialization, it's recommended to follow a power-up sequence of EN (enable) pin first, then VCC, and finally the input voltage. The device should be powered up with a monotonic voltage ramp, and the input voltage should be stable before enabling the device.
  • The maximum allowed voltage on the input pins is 6V. To protect against overvoltage, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the voltage to within the specified range.
  • During power-down or reset, the CAT9532WI's output will be in a high-impedance state. To ensure a clean power-down, it's recommended to use an external pull-down resistor on the output pin to prevent any unwanted voltage levels.
  • The recommended operating temperature range for the CAT9532WI is -40°C to 85°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures.
