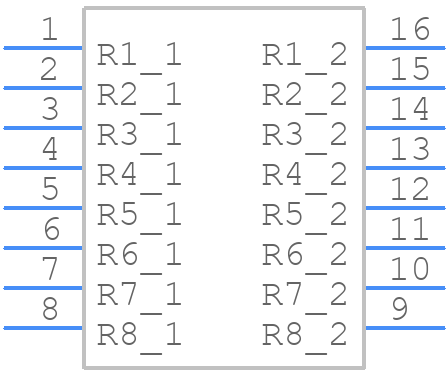

CAY16-150J8LF - Bourns

CAY16-150J8LF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
• How do I handle the component's thermal considerations?
  The CAY16-150J8LF has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources. A thermal pad or heat sink may be necessary for high-power applications.
• What is the recommended soldering process for this component?
  Bourns recommends a soldering temperature of 260°C (max) with a dwell time of 3-5 seconds. A soldering iron with a temperature-controlled tip is recommended to prevent overheating. Use a solder with a melting point of 180-190°C.
• How do I ensure the component's reliability in high-vibration environments?
  To ensure reliability in high-vibration environments, use a secure mounting method such as screwing or adhesive bonding. Ensure the component is properly secured to the PCB and that the PCB is rigidly mounted to the chassis or enclosure.
• What are the ESD handling precautions for this component?
  Handle the CAY16-150J8LF with ESD precautions, such as wearing an ESD strap, using ESD-safe packaging, and ensuring the workspace is ESD-protected. Avoid touching the component's pins or leads to prevent damage.
