CAY16-221J8LF - Bourns

Description: Resistor Networks & Arrays 220ohm 5% Convex 8resistors

Download CAY16-221J8LF Model

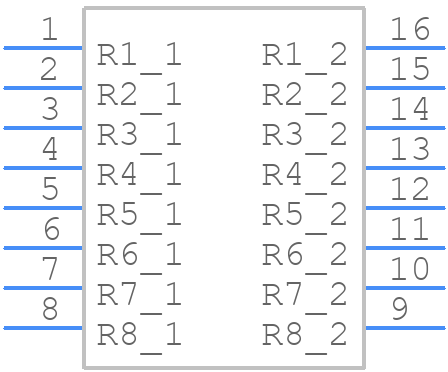

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CAY16-221J8LF - Bourns PCB footprint - Other - Other - CAY16-221J8LF-1
click to zoom
3D Models
CAY16-221J8LF - Bourns  - 3D model - Other - CAY16-221J8LF-1
click to zoom

CAY16-221J8LF Details

  • Manufacturer Part Number:

    CAY16-221J8LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.031 W

  • First Element Resistance:

    220 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.5 mm

  • Package Length:

    3.8 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    1.6 mm

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Power Dissipation (P):

    0.031 W

  • Rated Temperature:

    70 °C

  • Resistance:

    220 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    220 Ω

  • Size Code:

    1506

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    25 V

CAY16-221J8LF Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Handle the component by the body, avoiding touching the leads or the ceramic core. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
  • The CAY16-221J8LF is rated for operation from -40°C to +125°C. However, derating may be necessary for high-frequency applications or extreme environmental conditions.
  • Yes, the CAY16-221J8LF is designed to withstand vibrations up to 10 G peak acceleration. However, it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress.
  • Use a multimeter to measure the component's inductance, resistance, and capacitance. Check for signs of physical damage, overheating, or corrosion. Consult the datasheet and application notes for guidance on troubleshooting and fault diagnosis.
