The recommended PCB land pattern for the CAY16-222J8LF can be found in the Bourns Application Note S-8151, which provides detailed guidelines for PCB layout and assembly.
To prevent damage, handle the CAY16-222J8LF by the body only, avoiding touching the leads or the ceramic element. Use anti-static precautions and follow standard ESD handling procedures.
The maximum operating temperature range for the CAY16-222J8LF is -40°C to +125°C, as specified in the datasheet. However, it's recommended to derate the component's performance at extreme temperatures.
Yes, the CAY16-222J8LF is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper PCB mounting and assembly.
The correct orientation of the CAY16-222J8LF on the PCB is indicated by the marking on the component. The marking should face upwards, and the leads should be aligned with the PCB pads according to the recommended land pattern.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAY16-222J8LF Overview

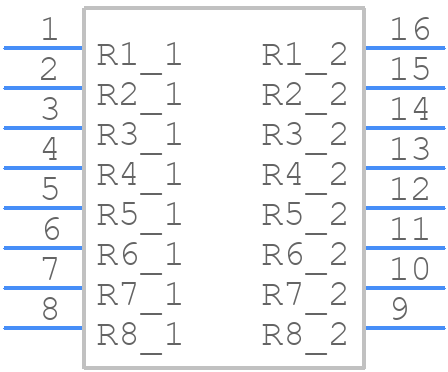

Use the download button to access the CAY16-222J8LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAY16,
or try a keyword search, such as Array/Network Resistors
