- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CB1-P-24V
- Part Number CB1-P-24V
- Manufacturer Panasonic
- Pin Count 5
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - CB1-P-24V
- Released Date Sep 4, 2019
- Last Modified Date Feb 17, 2025 5:43 AM UTC
- Pinout / Pin List Click Here (Member Only)
CB1-P-24V Details
-
Manufacturer Part Number:
CB1-P-24V
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.41.00.20
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
6.89
-
Body Breadth:
22 mm
-
Body Height:
25 mm
CB1-P-24V Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the CB1-P-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
-
The CB1-P-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
-
Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
-
The CB1-P-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
-
The expected lifespan of the CB1-P-24V relay is 100,000 cycles at 20 Hz, with a minimum of 50,000 cycles guaranteed. However, the actual lifespan may vary depending on the application, operating conditions, and maintenance.
Trust Checks
Expert Contribution
System Verified
Community Approved
CB1-P-24V Overview

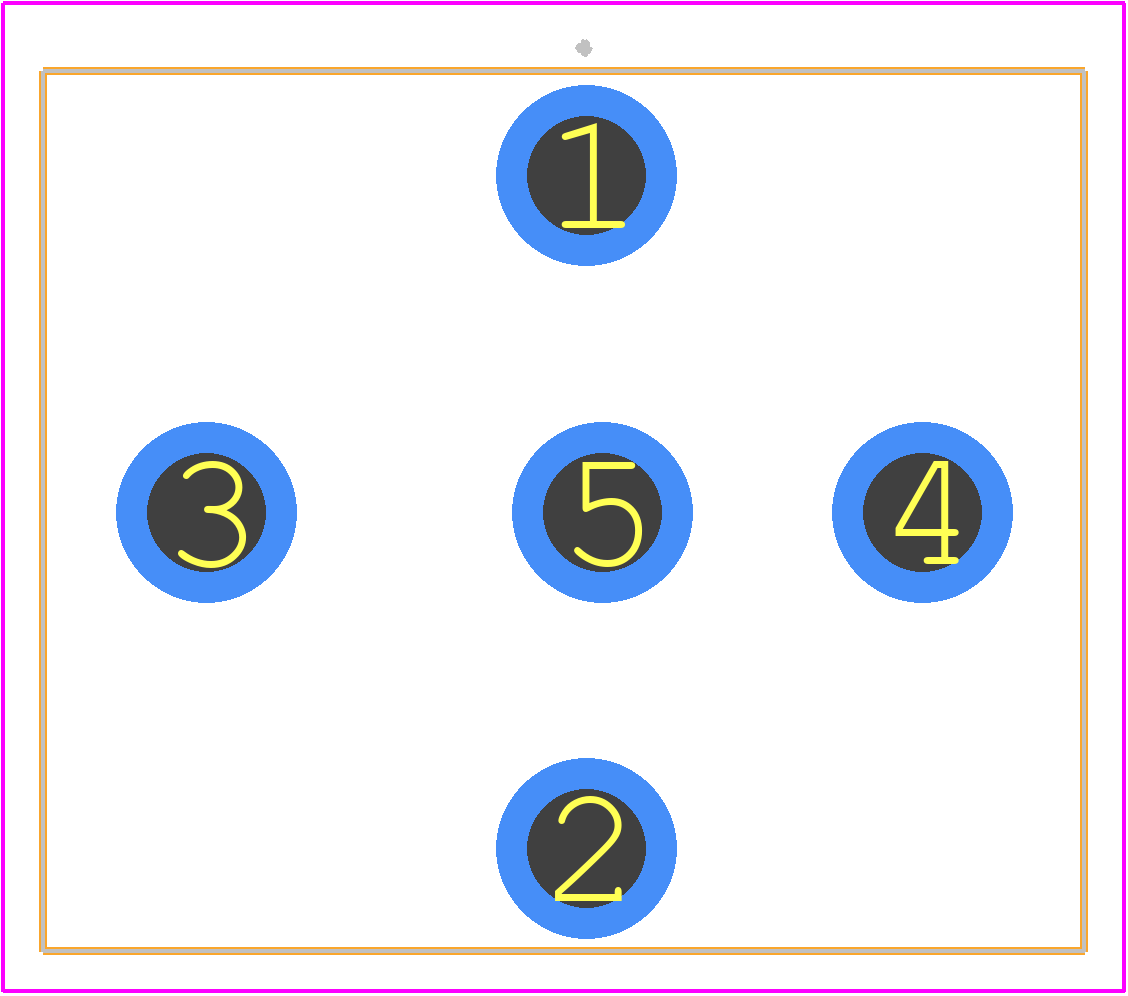

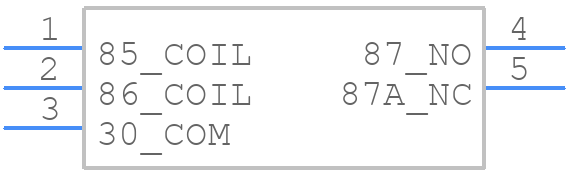

Use the download button to access the CB1-P-24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB1-P,
or try a keyword search, such as Power/Signal Relays
