The maximum switching frequency of the CB1A-P-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The CB1A-P-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
The CB1A-P-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
The expected lifespan of the CB1A-P-24V relay is 100,000 cycles at a switching frequency of 20 Hz. However, the actual lifespan may vary depending on the application, operating conditions, and maintenance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CB1A-P-24V Overview

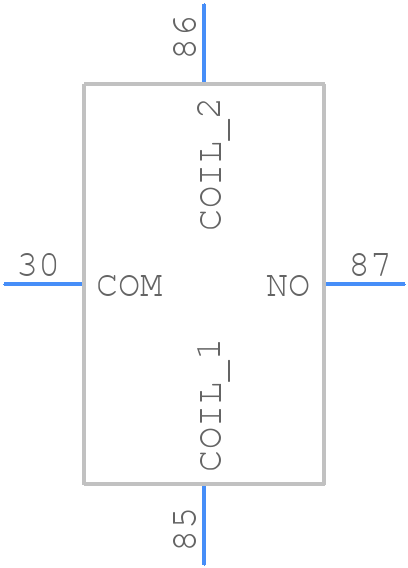

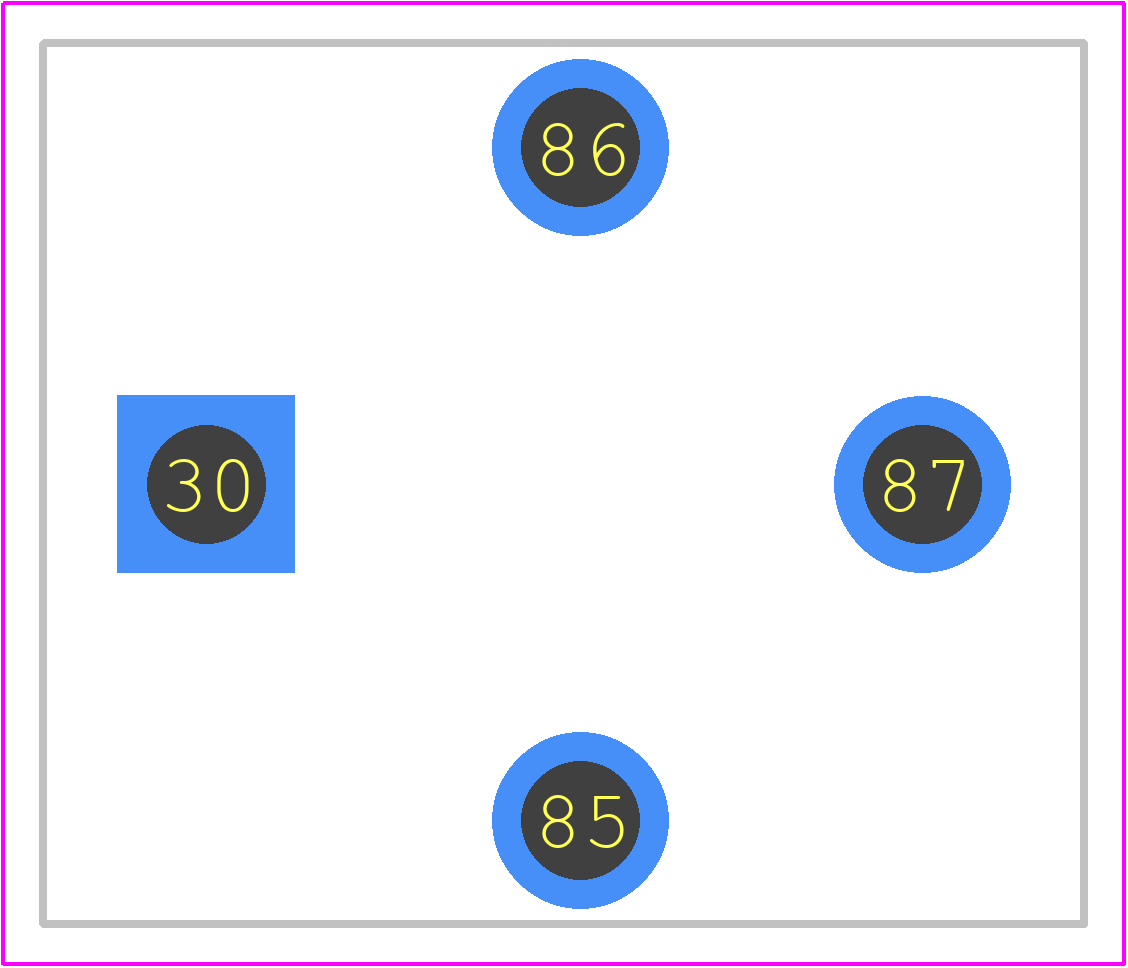

Use the download button to access the CB1A-P-24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB1A-,
or try a keyword search, such as Power/Signal Relays
