Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce thermal resistance, and prevent soldering issues.
To handle high power dissipation, ensure good thermal conductivity by using a heat sink, thermal interface material, and a well-designed PCB layout. Additionally, consider using a thermal management system, such as a fan or heat pipe, to keep the component within its operating temperature range.
While the datasheet provides some information on voltage and current ratings, it's essential to consult Panasonic's application notes or contact their support team for specific guidance on overload tolerance. This will help prevent damage to the component and ensure reliable operation.
The CB1AF-P-12V is a commercial-grade component, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. Consult Panasonic's support team or relevant industry standards (e.g., AEC-Q100) to ensure the component meets the necessary requirements.
To ensure long-term reliability, follow proper storage, handling, and soldering procedures. Additionally, operate the component within its recommended specifications, avoid excessive temperature cycling, and consider implementing a preventive maintenance schedule to detect potential issues early on.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CB1AF-P-12V Overview

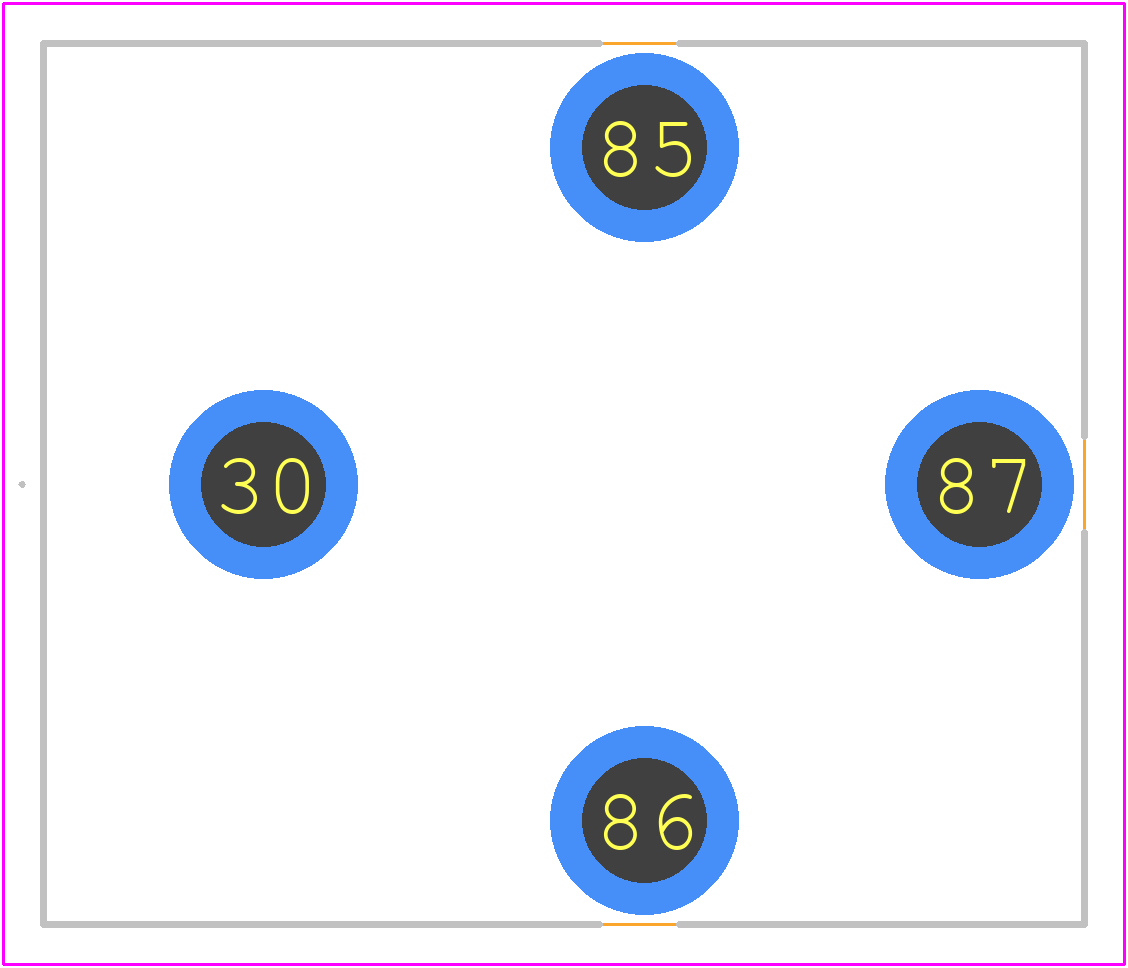

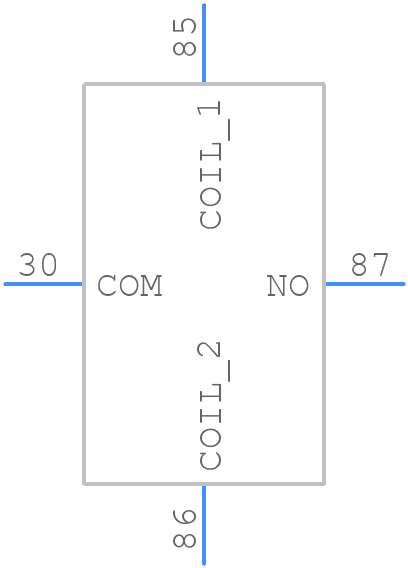

Use the download button to access the CB1AF-P-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB1AF,
or try a keyword search, such as Power/Signal Relays
