Technical Content
Part Image

CB1AH-P-12V - Panasonic

Description: Panasonic SPST Automotive Relay PCB Mount, 12V dc Coil, 70 A

Download CB1AH-P-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

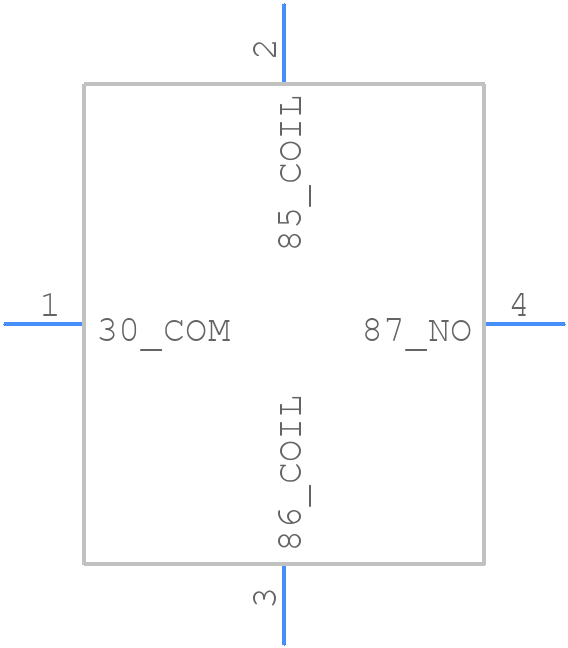

Symbol
CB1AH-P-12V - Panasonic - PCB symbol
click to zoom

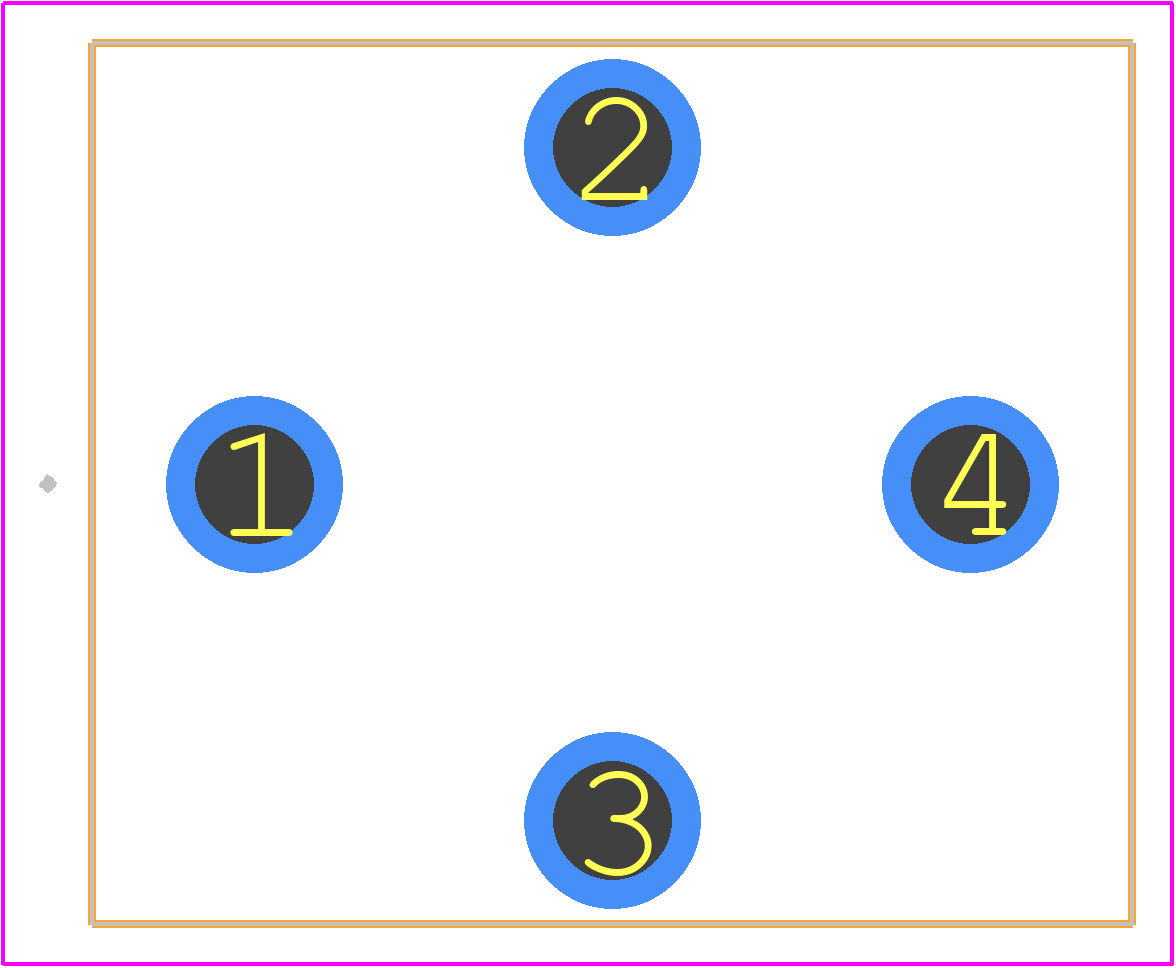

PCB Footprints
CB1AH-P-12V - Panasonic PCB footprint - Other - Other - CB1A-T-P-12V
click to zoom
3D Models
CB1AH-P-12V - Panasonic - 3D model - Other - CB1A-T-P-12V
click to zoom

CB1AH-P-12V Details

  • Manufacturer Part Number:

    CB1AH-P-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.89

  • Body Breadth:

    22 mm

  • Body Height:

    25.5 mm

  • Body Length or Diameter:

    26.5 mm

  • Coil Current(DC)-Max:

    0.15 A

  • Coil Operate Voltage(DC):

    7 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    4.2 V

  • Coil Resistance:

    80 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@12VDC

  • Contact Voltage(DC)-Max:

    12 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    50000 Cycle(s)

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    26.5mm x 22mm x 25.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

CB1AH-P-12V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CB1AH-P-12V is -40°C to 105°C.
  • To ensure reliability in high-vibration environments, it is recommended to use a secure mounting method, such as screw mounting or adhesive mounting, and to follow the manufacturer's guidelines for vibration testing.
  • Yes, the CB1AH-P-12V is designed to operate in humid environments, but it is recommended to follow the manufacturer's guidelines for humidity testing and to ensure proper sealing and encapsulation.
  • The recommended storage condition for the CB1AH-P-12V is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 60%.
  • To prevent ESD damage, it is recommended to handle the CB1AH-P-12V with an anti-static wrist strap or mat, and to follow proper ESD handling procedures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CB1AH-P-12V Overview

Use the download button to access the CB1AH-P-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB1AH, or try a keyword search, such as Power/Signal Relays
