CB1AH-P-24V - Panasonic

Description: Automotive Relay, 24 VDC, 20 A, SPDT, Through Hole, Solder, CB Series

Download CB1AH-P-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

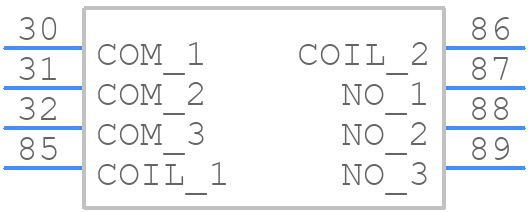

CB1AH-P-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

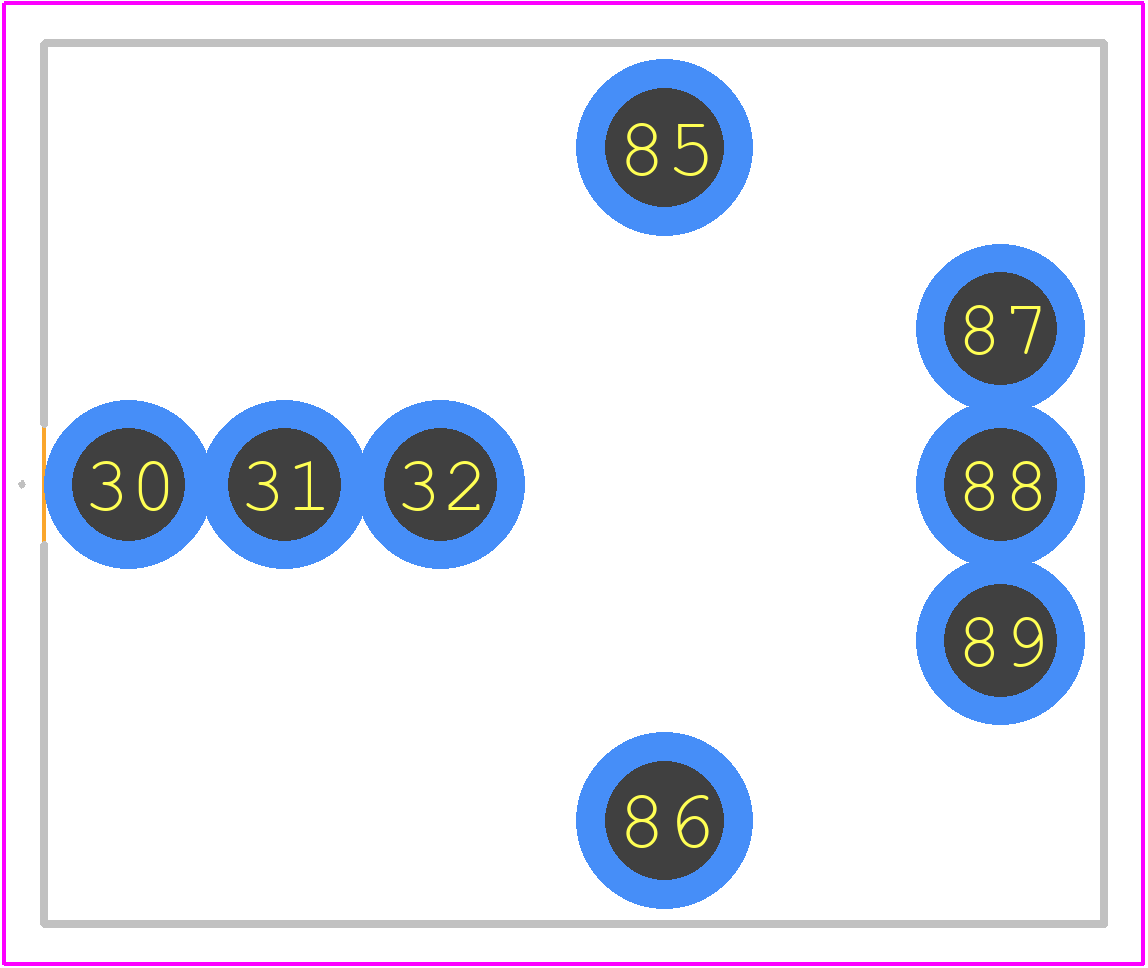

CB1AH-P-24V - Panasonic PCB footprint - Other - Other - CB1AH-P-24V-1
click to zoom
3D Models
CB1AH-P-24V - Panasonic - 3D model - Other - CB1AH-P-24V-1
click to zoom

CB1AH-P-24V Details

  • Manufacturer Part Number:

    CB1AH-P-24V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.89

  • Body Breadth:

    22 mm

  • Body Height:

    25.5 mm

  • Body Length or Diameter:

    26.5 mm

  • Coil Current(DC)-Max:

    0.075 A

  • Coil Operate Voltage(DC):

    14 V

  • Coil Power:

    1800 mW

  • Coil Release Voltage(DC):

    8.4 V

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    50000 Cycle(s)

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    26.5mm x 22mm x 25.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

CB1AH-P-24V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the CB1AH-P-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The CB1AH-P-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
  • Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
  • The CB1AH-P-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
  • Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CB1AH-P-24V Overview

Use the download button to access the CB1AH-P-24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB1AH, or try a keyword search, such as Power/Signal Relays
