CBBJR79 - Cinch Connectivity Solutions

Description: TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount, Through Hole, Right Angle Solder

Download CBBJR79 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

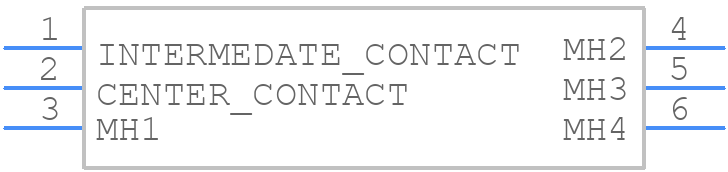

CBBJR79 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

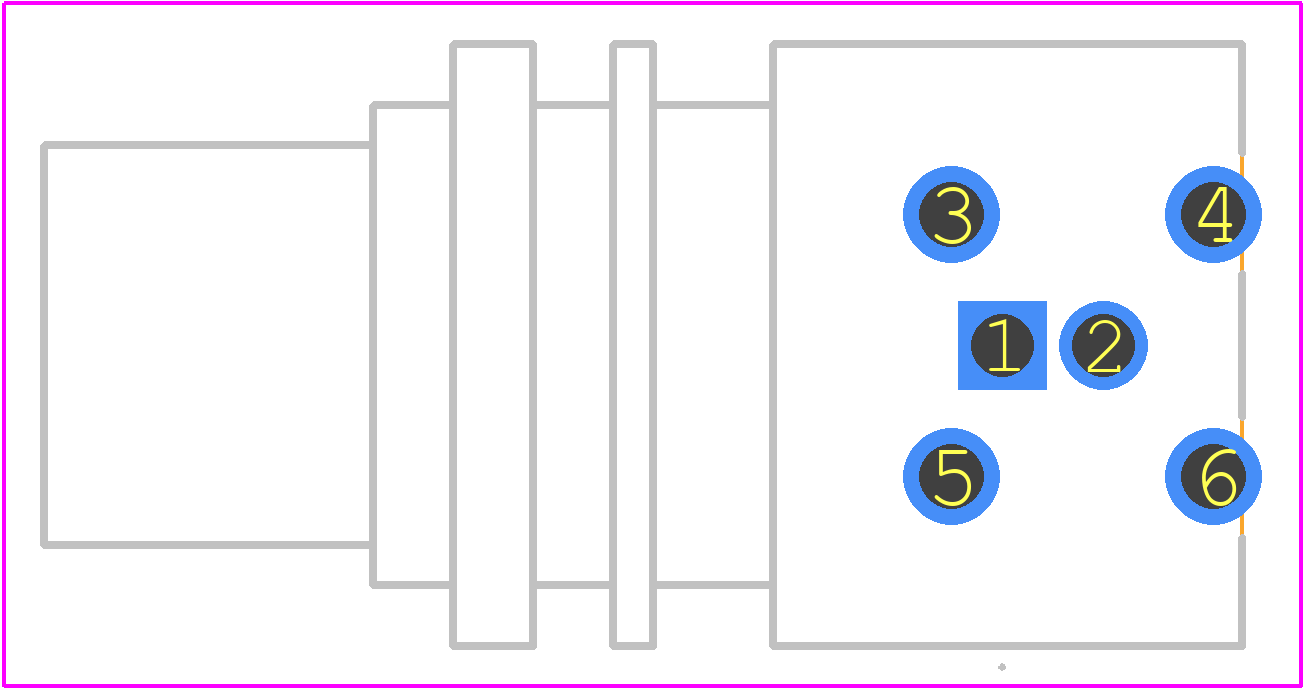

CBBJR79 - Cinch Connectivity Solutions PCB footprint - Other - Other - CBBJR79-3
click to zoom
3D Models
CBBJR79 - Cinch Connectivity Solutions - 3D model - Other - CBBJR79-3
click to zoom

CBBJR79 Details

  • Manufacturer Part Number:

    CBBJR79

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.89

  • Additional Feature:

    STANDARD:MIL-C-49142

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF TRIAXIAL-BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUORO ETHYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    0.5 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

CBBJR79 Frequently Asked Questions (FAQs)

  • The recommended torque for the CBBJR79 connectors is 10-12 in-lbs (1.1-1.4 Nm) for the screw machined receptacles and 5-7 in-lbs (0.6-0.8 Nm) for the screw-less receptacles.
  • Yes, the CBBJR79 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-STD-202, Method 204, Condition D.
  • The CBBJR79 operates over a temperature range of -55°C to 125°C (-67°F to 257°F).
  • Yes, the CBBJR79 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The CBBJR79 has a mating cycle life of 500 cycles minimum.
