CBBJR79A - Cinch Connectivity Solutions

Description: TROMPETER - CINCH CONNECTIVITY - CBBJR79A - RF COAX, TWINAX/TRIAX TRB JACK, PANEL

Download CBBJR79A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CBBJR79A - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

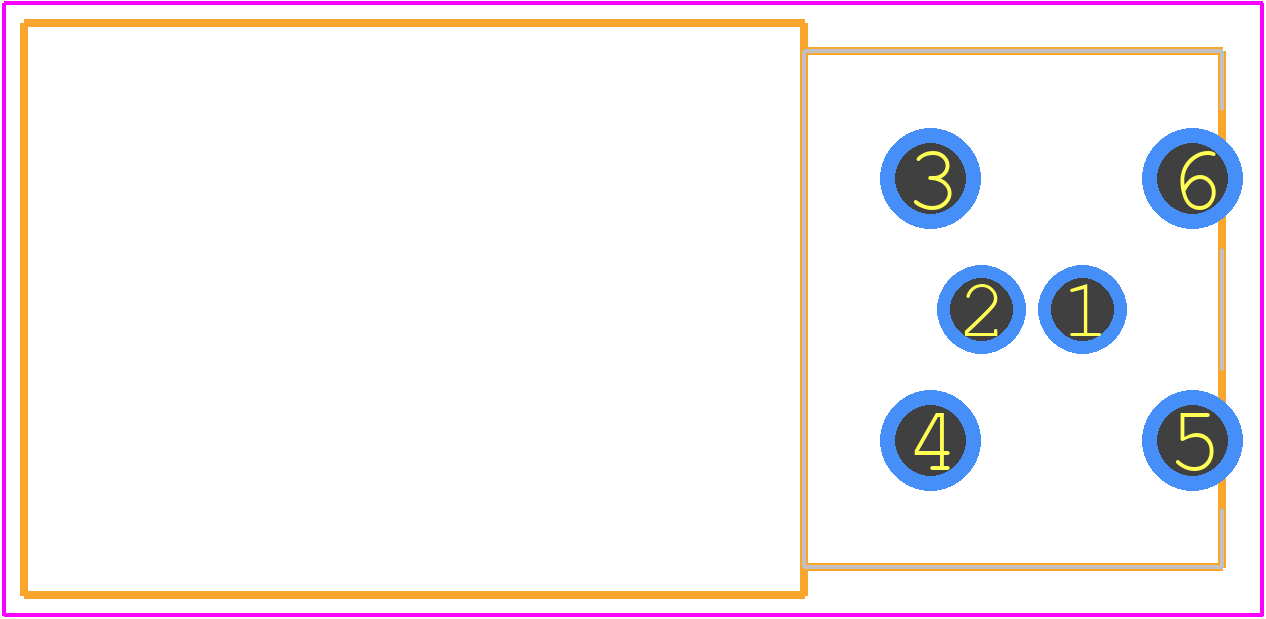

CBBJR79A - Cinch Connectivity Solutions PCB footprint - Other - Other - CBBJR79A-3
click to zoom
3D Models
CBBJR79A - Cinch Connectivity Solutions - 3D model - Other - CBBJR79A-3
click to zoom

CBBJR79A Details

  • Manufacturer Part Number:

    CBBJR79A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.89

  • Additional Feature:

    STANDARD:MIL-C-49142

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF TRIAXIAL-BNC CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRASS

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Frequency-Max:

    0.5 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

CBBJR79A Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4-6 in-lbs).
  • Yes, the CBBJR79A is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The operating temperature range for the CBBJR79A is -55°C to 125°C (-65°F to 257°F).
  • Yes, the connector is designed to withstand harsh environments and meets the requirements of MIL-STD-810, Method 507.5 for humidity and Method 504.1 for chemical resistance.
  • Yes, the CBBJR79A is designed for high-speed data transmission applications and has a bandwidth of up to 10 Gbps.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBBJR79A Overview

Use the download button to access the CBBJR79A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBBJR, or try a keyword search, such as RF Twinax/Triax/Quadax Connectors
