CBJR70A - Cinch Connectivity Solutions

Description: RF Connectors / Coaxial Connectors TRB JK R/A Board MNT Tall

Download CBJR70A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CBJR70A - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

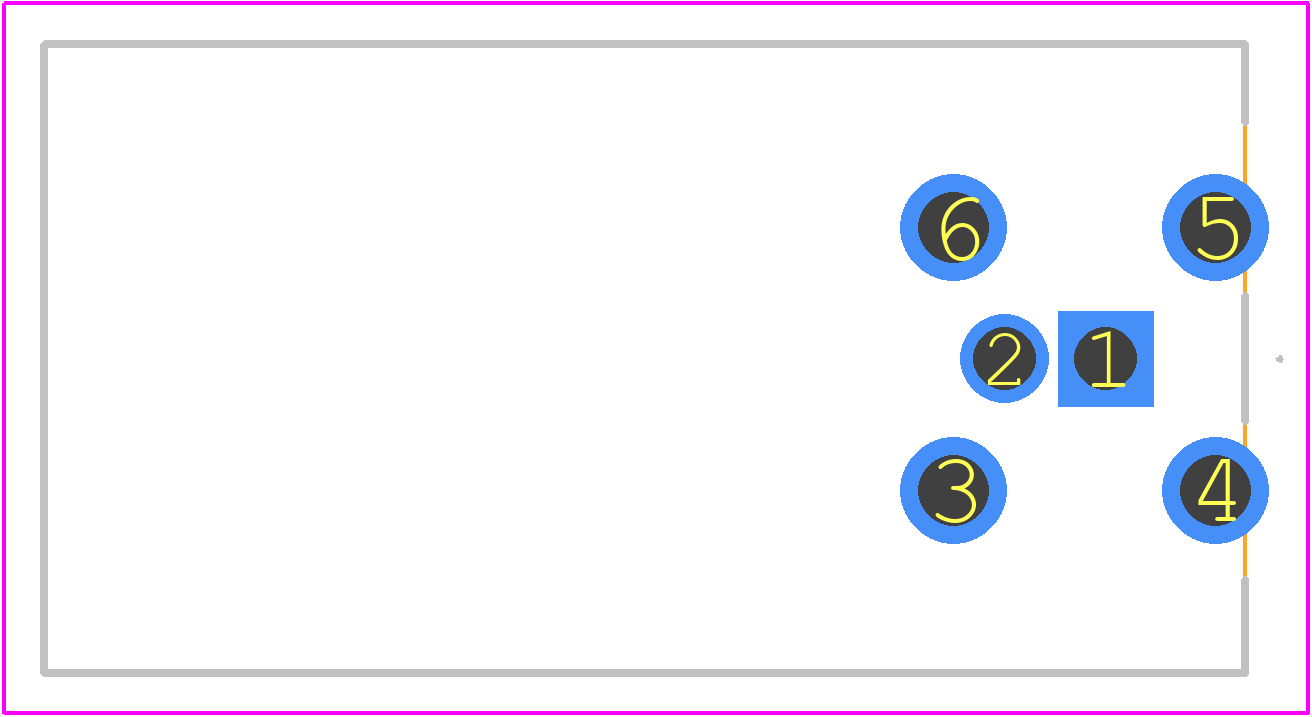

CBJR70A - Cinch Connectivity Solutions PCB footprint - Other - Other - CBJR70A-2
click to zoom
3D Models
CBJR70A - Cinch Connectivity Solutions - 3D model - Other - CBJR70A-2
click to zoom

CBJR70A Details

  • Manufacturer Part Number:

    CBJR70A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    8

  • Connector Type:

    RF TRIAXIAL CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

CBJR70A Frequently Asked Questions (FAQs)

  • The recommended torque for the CBJR70A connector is 10-12 in-lbs (1.1-1.4 Nm) for the jack screws and 5-7 in-lbs (0.6-0.8 Nm) for the plug screws.
  • Yes, the CBJR70A connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 20 Gs peak acceleration.
  • Yes, the CBJR70A connector is designed for use in harsh environments. It has a salt spray resistance of 500 hours and can operate in temperatures ranging from -65°C to 200°C.
  • The CBJR70A connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the CBJR70A connector is designed for use with cable assemblies. It has a rear-release crimp contact system that allows for easy cable assembly and repair.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBJR70A Overview

Use the download button to access the CBJR70A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBJR7, or try a keyword search, such as RF Twinax/Triax/Quadax Connectors
