The recommended PCB layout involves placing the CBM101S120 near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, a heat sink with a thermal resistance of 10°C/W or lower is recommended, and the device should be mounted on a multi-layer PCB with a thermal vias design.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a reflow oven or a hot air gun to solder the device, and avoid using excessive solder or flux. Inspect the solder joints under a microscope to ensure they are smooth and shiny, with no signs of cold solder joints.
To prevent ESD damage, handle the CBM101S120 in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or exposed metal parts. Use ESD-safe packaging and storage materials, and ensure that all equipment and tools are ESD-compliant.
To troubleshoot issues with the CBM101S120, start by checking the input voltage and current, and ensure that the device is properly soldered and mounted. Verify that the output voltage is within the specified range, and check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the input capacitor should have a low ESR and be rated for the input voltage and ripple current. The output filter components, such as the inductor and capacitor, should be selected based on the output voltage and current requirements, and should be rated for the operating frequency and temperature range. Consult the datasheet and application notes for specific guidance on component selection and design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CBM101S120 Overview

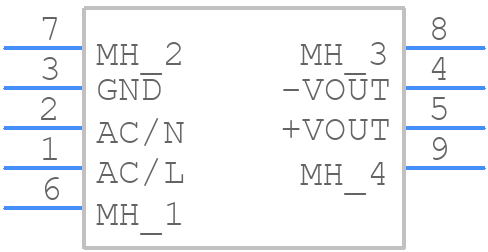

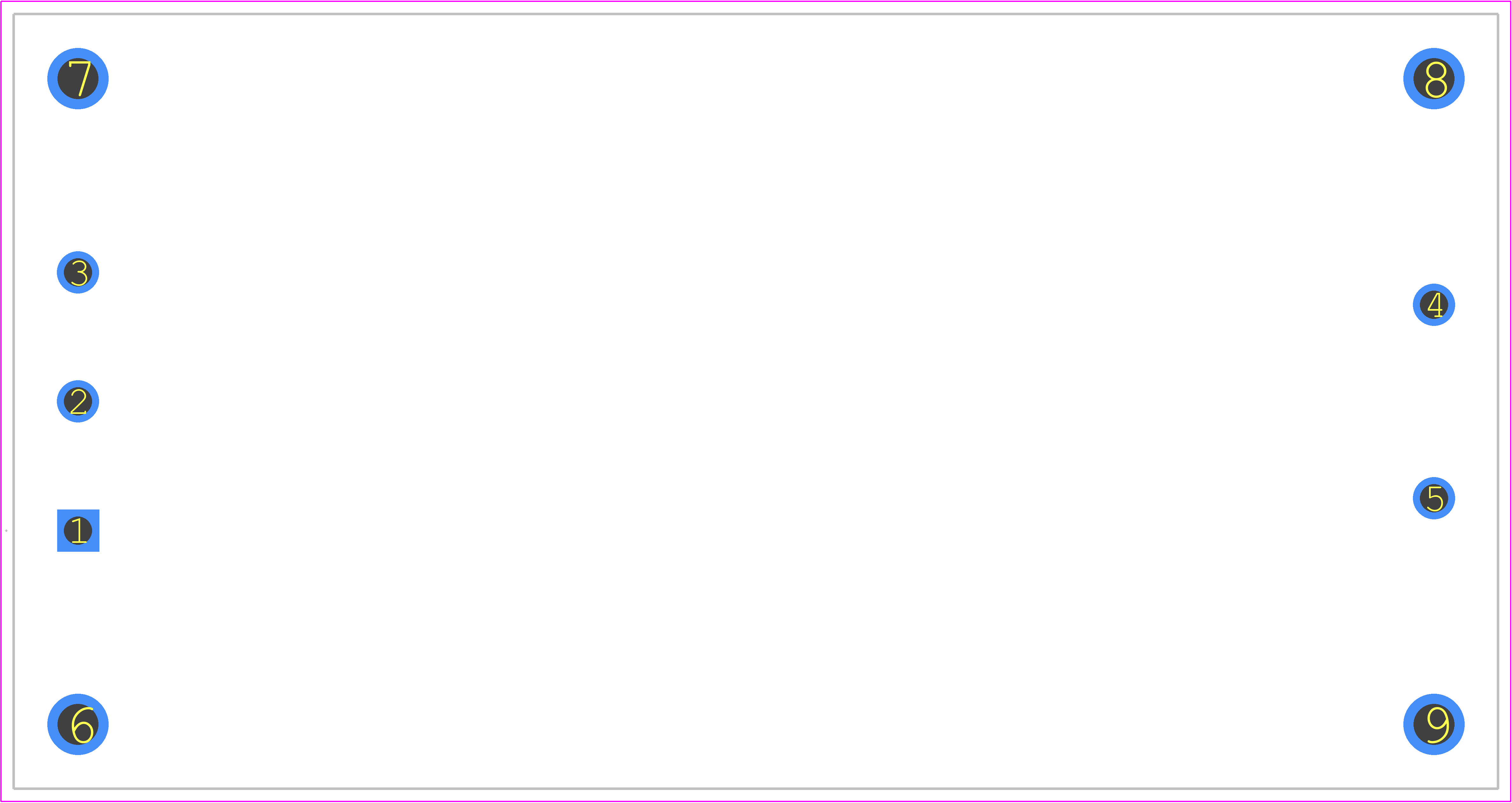

Use the download button to access the CBM101S120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBM10,
or try a keyword search, such as Power Supply Modules
