CBP-1000F+ - Mini-Circuits

Description: Signal Conditioning Ceramic Resonator Band Pass Filter, 900 - 1100 MHz, 50?

Download CBP-1000F+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

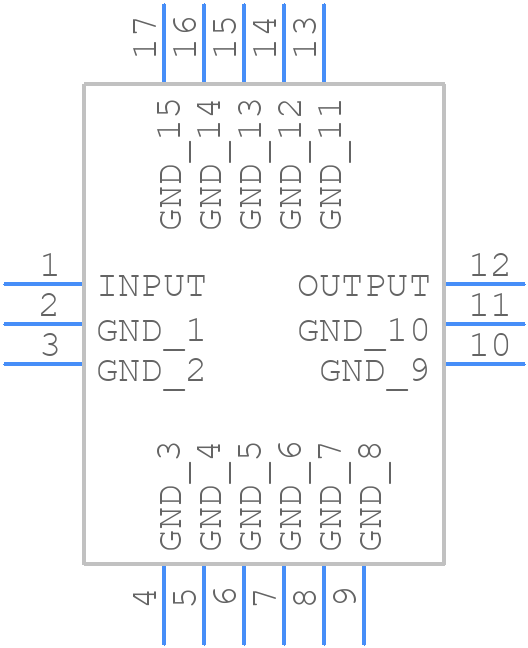

CBP-1000F+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

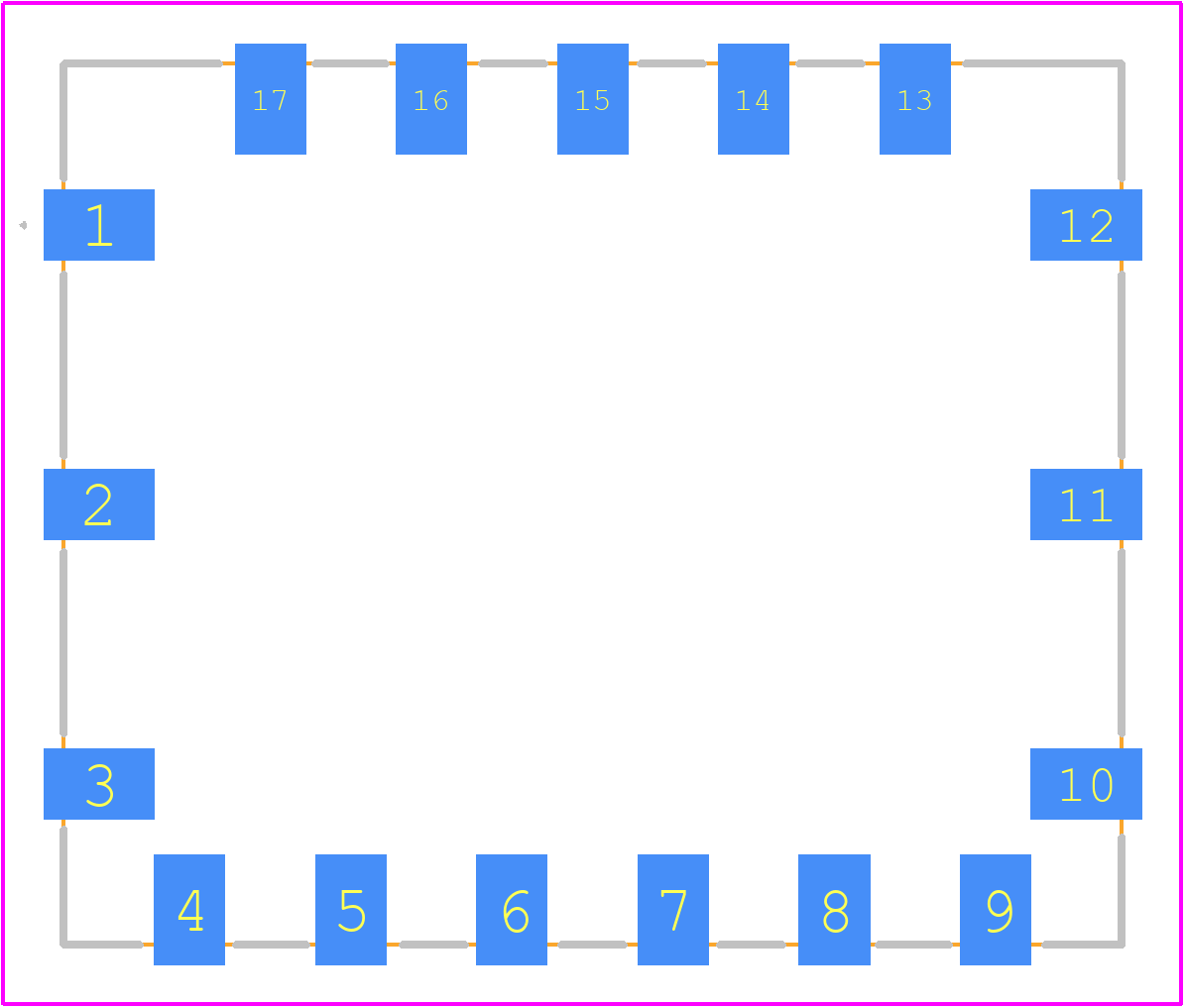

CBP-1000F+ - Mini-Circuits PCB footprint - Other - Other - KV1710_2022-1
click to zoom
3D Models
CBP-1000F+ - Mini-Circuits - 3D model - Other - KV1710_2022-1
click to zoom

CBP-1000F+ Details

  • Manufacturer Part Number:

    CBP-1000F+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.79

  • Average Input Power:

    10 W

  • Center or Cutoff Frequency (fo/fc):

    1000 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    6.07 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.6 dB

  • Length:

    26.67 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    1.8

  • Width:

    22.23 mm

CBP-1000F+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • To achieve the best possible return loss and insertion loss performance, ensure that the device is properly soldered and mounted, and that the input and output ports are properly matched to 50 ohms. Additionally, use a high-quality PCB material and follow good RF design practices.
  • The maximum power handling capability of the CBP-1000F+ is 1 watt. Exceeding this power rating may cause damage to the device or affect its performance.
  • While the CBP-1000F+ is designed for 50-ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the device's performance and require additional circuitry to achieve optimal results.
  • The operating temperature range of the CBP-1000F+ is -40°C to +85°C. Operating the device outside of this range may affect its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-1000F+ Overview

Use the download button to access the CBP-1000F+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
