CBP-1034C+ - Mini-Circuits

Description: CBP-1034C+ is a ceramic-coaxial-resonator based bandpass flter in a shielded package fabricated using SMT technology

Download CBP-1034C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

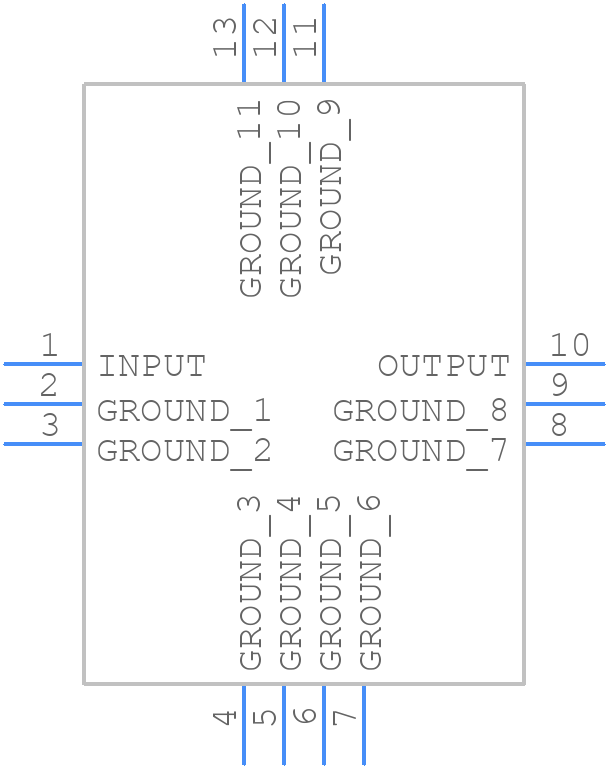

CBP-1034C+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

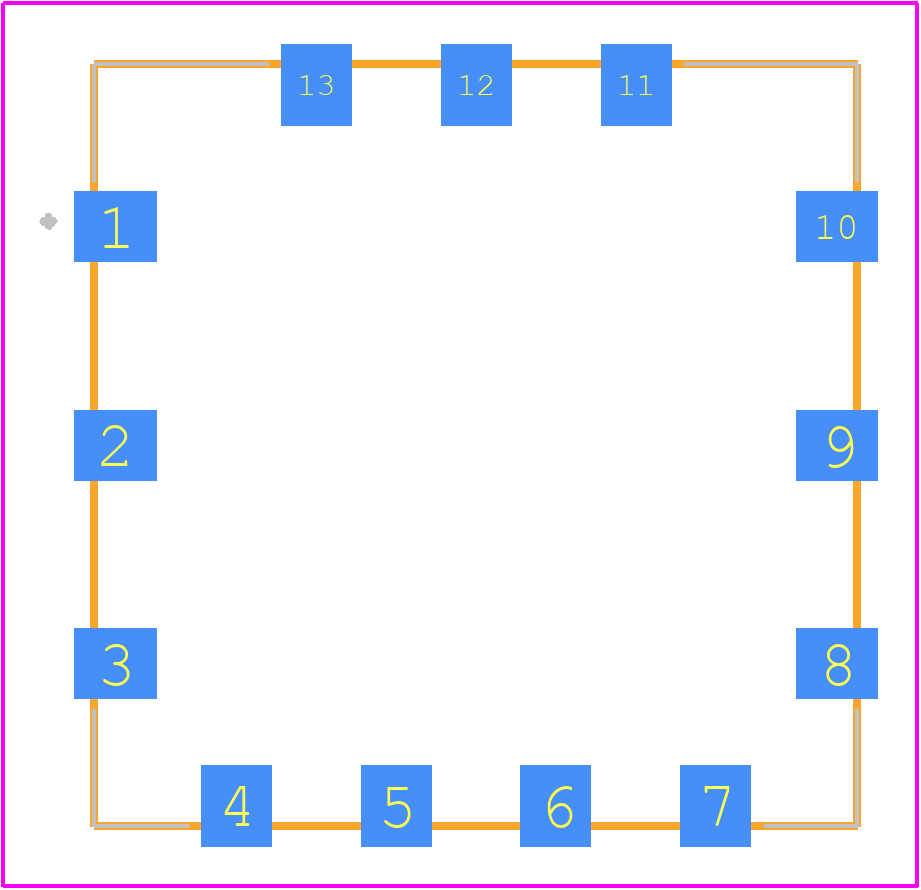

CBP-1034C+ - Mini-Circuits PCB footprint - Other - Other - CBP-1034C+-1
click to zoom
3D Models
CBP-1034C+ - Mini-Circuits - 3D model - Other - CBP-1034C+-1
click to zoom

CBP-1034C+ Details

  • Manufacturer Part Number:

    CBP-1034C+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    1034 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    5.33 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.2

  • Width:

    19.05 mm

CBP-1034C+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and values.
  • While the datasheet specifies a maximum input power of +23 dBm, the actual power handling capability depends on the operating frequency, temperature, and other factors. It's recommended to consult with Mini-Circuits' application engineers for specific guidance on power handling and thermal management.
  • Yes, the CBP-1034C+ is designed to meet the requirements of high-reliability and space-constrained applications. Mini-Circuits offers a range of screening and testing options, including MIL-PRF-38534 and ESCC qualification, to ensure the component meets the necessary standards.
  • Mini-Circuits provides a troubleshooting guide on their website, which covers common issues and their causes. Additionally, their application engineers can provide guidance on troubleshooting and debugging techniques specific to the CBP-1034C+.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CBP-1034C+ Overview

Use the download button to access the CBP-1034C+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as General Purpose Passive Filters
