CBP-1183A+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download CBP-1183A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

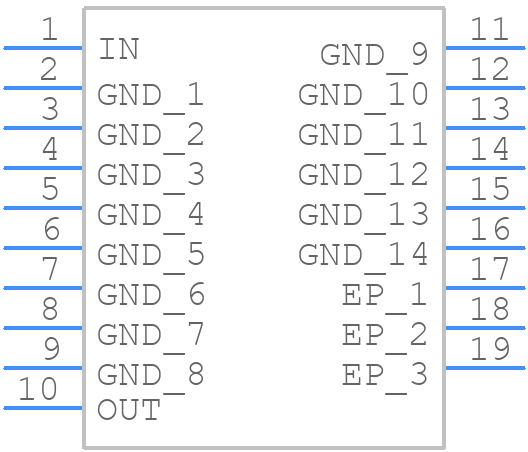

Symbol
CBP-1183A+ - Mini-Circuits - PCB symbol
click to zoom

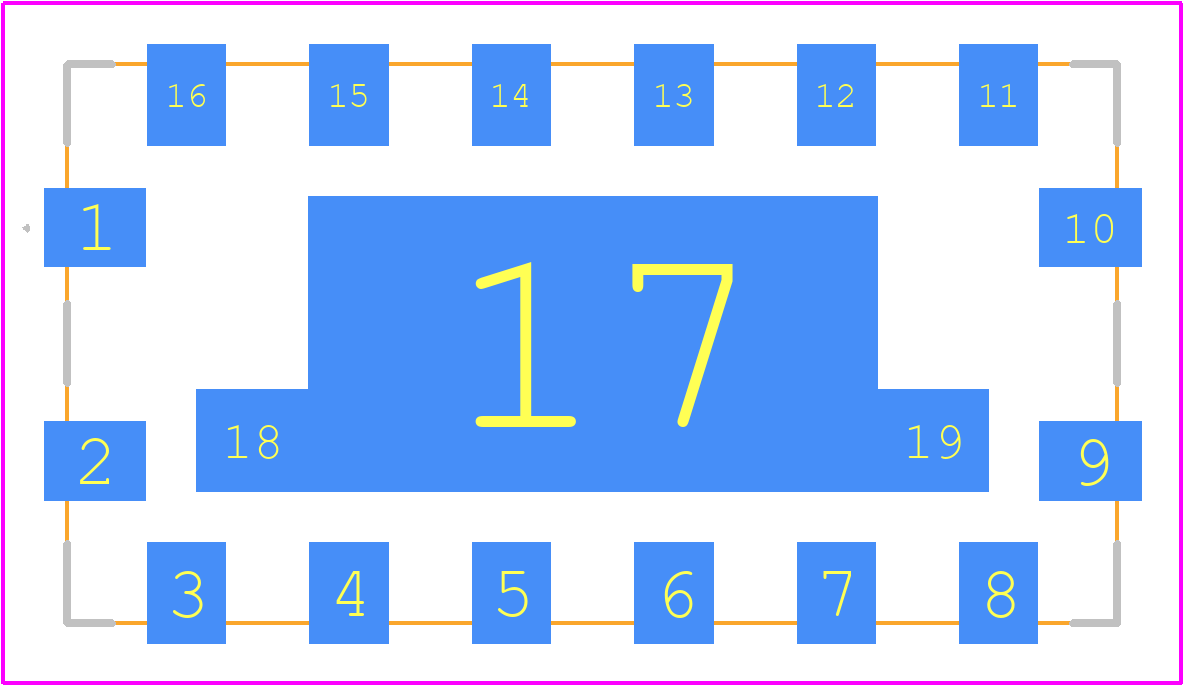

PCB Footprints
CBP-1183A+ - Mini-Circuits PCB footprint - Other - Other - KV1514_25
click to zoom
3D Models
CBP-1183A+ - Mini-Circuits - 3D model - Other - KV1514_25
click to zoom

CBP-1183A+ Details

  • Manufacturer Part Number:

    CBP-1183A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5

  • Average Input Power:

    10 W

  • Center or Cutoff Frequency (fo/fc):

    1183 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    5.72 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    4 dB

  • Length:

    26.24 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    2.3

  • Width:

    13.97 mm

CBP-1183A+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components for optimal matching.
  • The maximum power handling capability of the CBP-1183A+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power without degradation. Higher power levels may require additional heat sinking or derating.
  • While the CBP-1183A+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching speed and frequency may be limited by its internal capacitance and inductance. It's recommended to consult with Mini-Circuits' application engineers for specific guidance.
  • The operating temperature range for the CBP-1183A+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to derate the device's power handling capability and operating frequency accordingly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-1183A+ Overview

Use the download button to access the CBP-1183A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
