CBP-1260C+ - Mini-Circuits

Description: Signal Conditioning Ceramic Resonator Band Pass Filter

Download CBP-1260C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

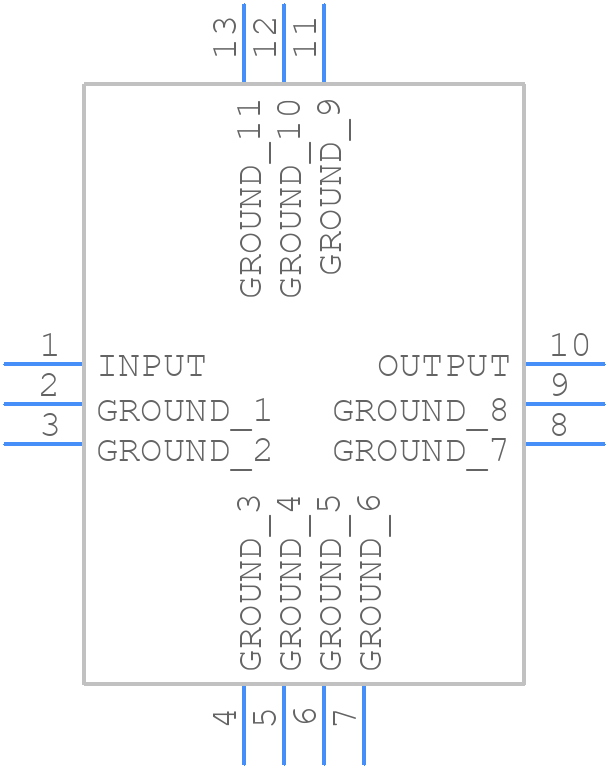

CBP-1260C+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

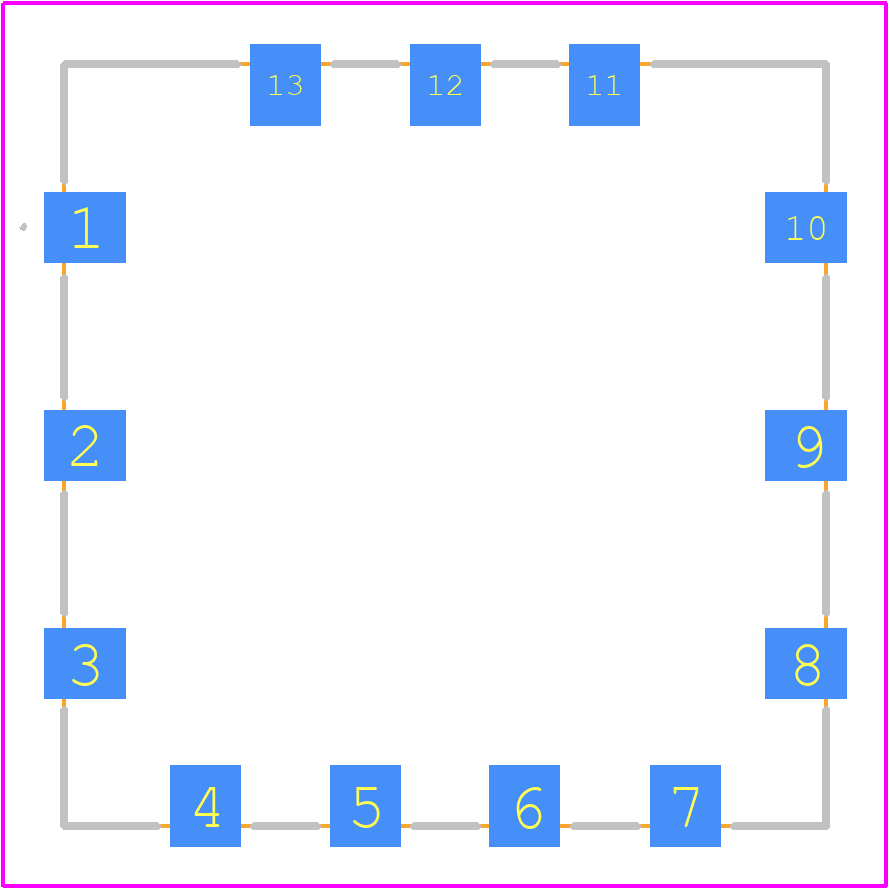

CBP-1260C+ - Mini-Circuits PCB footprint - Other - Other - CBP-1260C+-2
click to zoom
3D Models
CBP-1260C+ - Mini-Circuits - 3D model - Other - CBP-1260C+-2
click to zoom

CBP-1260C+ Details

  • Manufacturer Part Number:

    CBP-1260C+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    1260 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    5.33 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.3

  • Width:

    19.05 mm

CBP-1260C+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • The CBP-1260C+ requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias voltage is well-regulated and decoupled, and use a low-ESR capacitor to filter the bias voltage.
  • The CBP-1260C+ can handle up to 10dBm of input power without damage. Exceeding this limit may cause permanent damage to the amplifier.
  • Check the PCB layout and grounding scheme for any issues, ensure the bias voltage and current are correct, and verify the input and output impedances are matched. Also, check for any signs of overheating or damage to the amplifier.
  • Yes, the CBP-1260C+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-1260C+ Overview

Use the download button to access the CBP-1260C+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
