CBP-1476BD+ footprint, schematic symbol and 3D model by Mini-Circuits

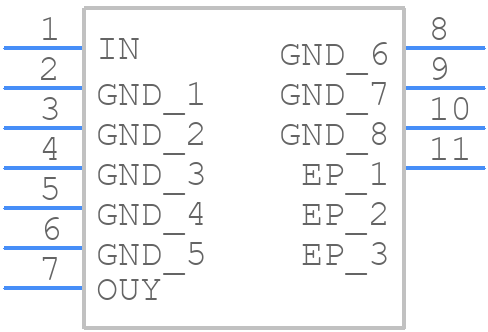

Symbol

click to zoom

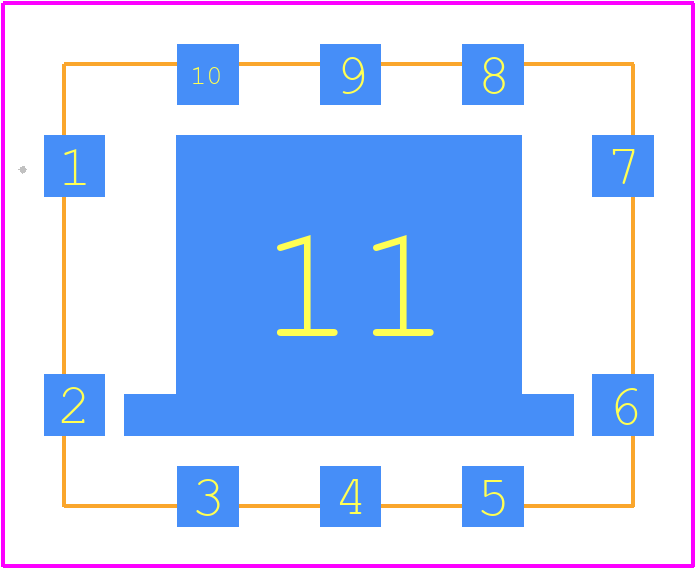

PCB Footprints

CBP-1476BD+ - Mini-Circuits PCB footprint - Other - Other - LW1611-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CBP-1476BD+
Part Number CBP-1476BD+
Manufacturer Mini-Circuits
Pin Count 13
Part Category Filter
Package Category Other
Footprint Name Other - LW1611-1
Released Date May 13, 2026
Last Modified Date May 13, 2026 11:00 AM UTC
Pinout / Pin List Click Here (Member Only)

CBP-1476BD+ Details

Manufacturer Part Number:
CBP-1476BD+
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6.49
Average Input Power:
5 W
Center or Cutoff Frequency (fo/fc):
1476 MHz
Filter Type:
BAND PASS FILTER
Height:
3.05 mm
Input Impedance:
50 OHM
Insertion Loss-Max:
3.5 dB
Length:
14.22 mm
Mounting Type:
SURFACE MOUNT
Number of Sections-Max:
1
Number of Sections-Min:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Impedance:
50 OHM Ω
VSWR:
1.67
Width:
11.05 mm

CBP-1476BD+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends following the layout guidelines provided in the application note AN-60-014, which provides detailed information on PCB layout, grounding, and decoupling for optimal performance.
Yes, the CBP-1476BD+ is designed to meet the requirements of high-reliability and aerospace applications. However, it's essential to consult with Mini-Circuits' sales team to discuss specific requirements and obtain the necessary documentation and certifications.
Mini-Circuits recommends following the soldering guidelines outlined in the datasheet and application notes. Additionally, it's essential to use a qualified soldering process and trained personnel to ensure reliable assembly.
Lead times may vary depending on the quantity and availability. Mini-Circuits recommends contacting their sales team to discuss lead times, inventory options, and potential buffer stock arrangements to meet specific production requirements.
Yes, the CBP-1476BD+ has a maximum junction temperature of 150°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to maintain reliable operation and prevent overheating.

Trust Checks

Expert Contribution

System Verified

Community Approved

CBP-1476BD+ Overview

Use the download button to access the CBP-1476BD+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as General Purpose Passive Filters
