CBP-1645J+ - Mini-Circuits

Description: Signal Conditioning Ceramic Resonator Band Pass Filter

Download CBP-1645J+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

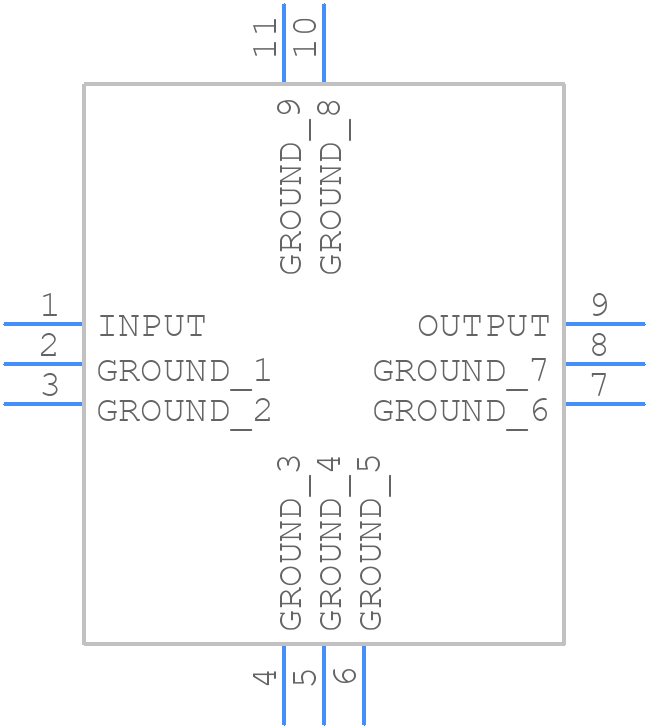

Symbol
CBP-1645J+ - Mini-Circuits - PCB symbol
click to zoom

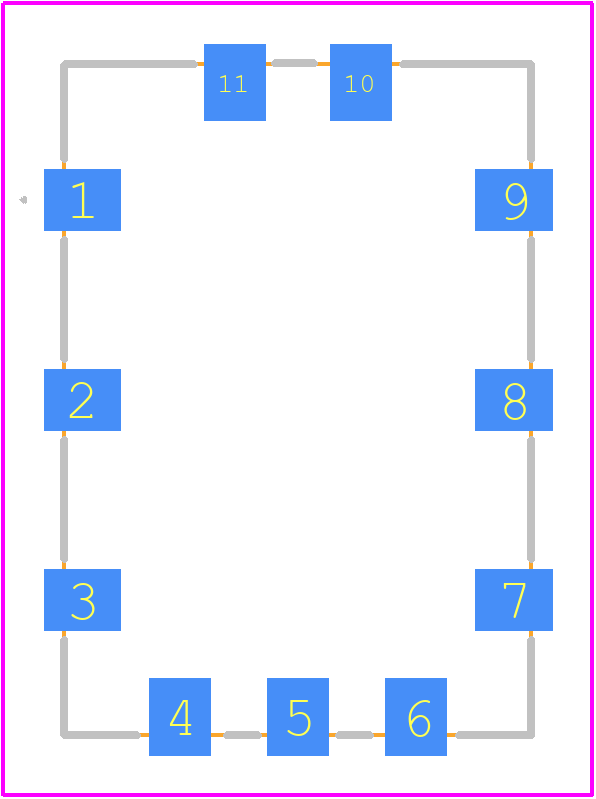

PCB Footprints
CBP-1645J+ - Mini-Circuits PCB footprint - Other - Other - CBP-1645J+-2
click to zoom
3D Models
CBP-1645J+ - Mini-Circuits - 3D model - Other - CBP-1645J+-2
click to zoom

CBP-1645J+ Details

  • Manufacturer Part Number:

    CBP-1645J+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.98

  • Average Input Power:

    8 W

  • Center or Cutoff Frequency (fo/fc):

    1645 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    4.45 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    16.76 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    2.32

  • Width:

    11.68 mm

CBP-1645J+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The CBP-1645J+ has a maximum junction temperature of 150°C. To handle heat generation, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider adding a heat sink or thermal pad if necessary.
  • The CBP-1645J+ is designed for 50Ω input and output impedance. To achieve optimal performance, ensure that the input and output impedance of the surrounding circuitry is matched to 50Ω using impedance matching networks or transformers.
  • Yes, the CBP-1645J+ can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to avoid uneven current distribution and potential oscillations.
  • The maximum safe operating voltage for the CBP-1645J+ is 36V. Exceeding this voltage can cause permanent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-1645J+ Overview

Use the download button to access the CBP-1645J+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-1, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
