CBP-2250A+ - Mini-Circuits

Description: Ceramic Resonator Band Pass Filter, 2000 - 2500 MHz, 50Ω

Download CBP-2250A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

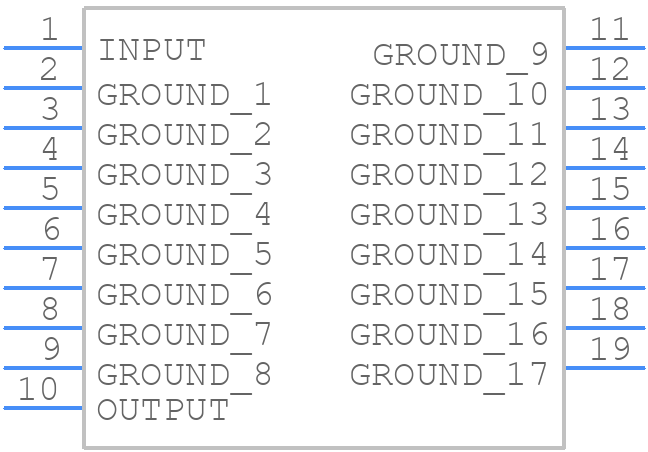

Symbol
CBP-2250A+ - Mini-Circuits - PCB symbol
click to zoom

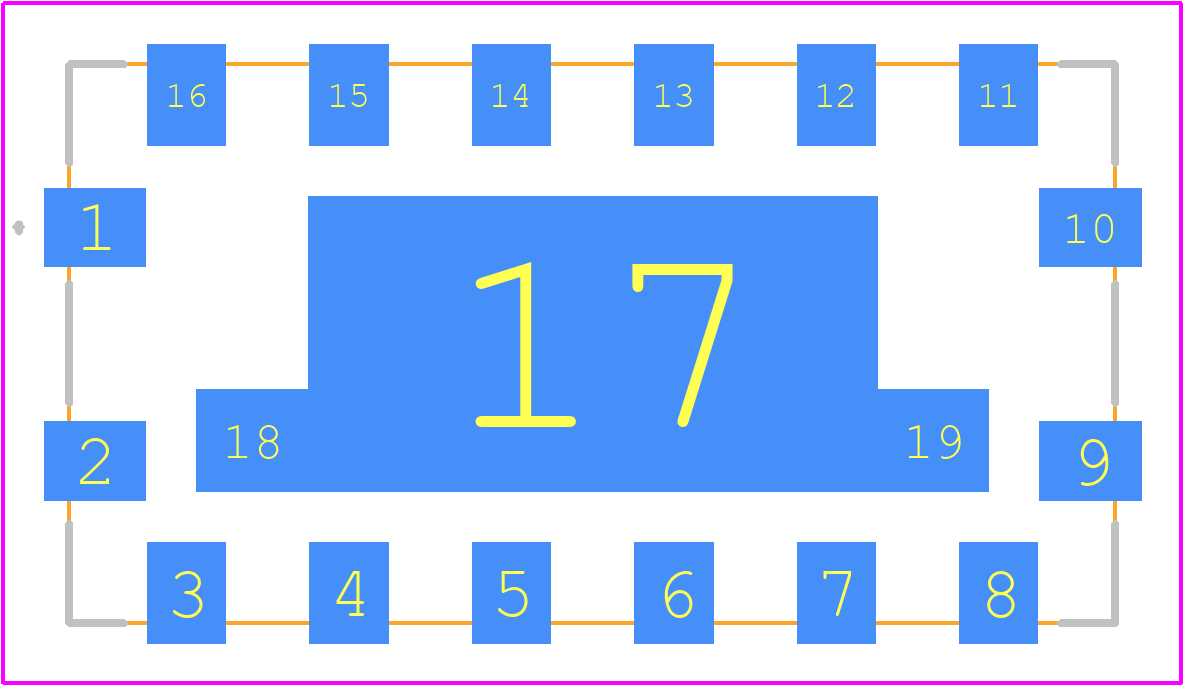

PCB Footprints
CBP-2250A+ - Mini-Circuits PCB footprint - Other - Other - CBP-2250A+
click to zoom
3D Models
CBP-2250A+ - Mini-Circuits - 3D model - Other - CBP-2250A+
click to zoom

CBP-2250A+ Details

  • Manufacturer Part Number:

    CBP-2250A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    2250 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    4.7 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    26.24 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    2.1

  • Width:

    13.97 mm

CBP-2250A+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • The CBP-2250A+ requires a bias voltage of +12V to +15V and a bias current of 100mA to 150mA. Ensure the bias voltage is well-regulated and the bias current is limited to prevent overheating.
  • The CBP-2250A+ can handle input powers up to +10dBm without damage. However, it's recommended to operate at input powers below +5dBm for optimal performance and to prevent compression.
  • Common causes of oscillation or instability include poor PCB layout, inadequate decoupling, or incorrect biasing. Check the PCB layout, ensure proper decoupling, and verify the bias voltage and current. If issues persist, consult the Mini-Circuits application note or contact their technical support.
  • Yes, the CBP-2250A+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout consideration to ensure proper phasing and impedance matching.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-2250A+ Overview

Use the download button to access the CBP-2250A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-2, or try a keyword search, such as Ceramic Filters
