CBP-840C+ - Mini-Circuits

Description: 840MHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 2dB 13-SMD Module , -40°C to 85°C , 5W , CASE STYLE: MP1766

Download CBP-840C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

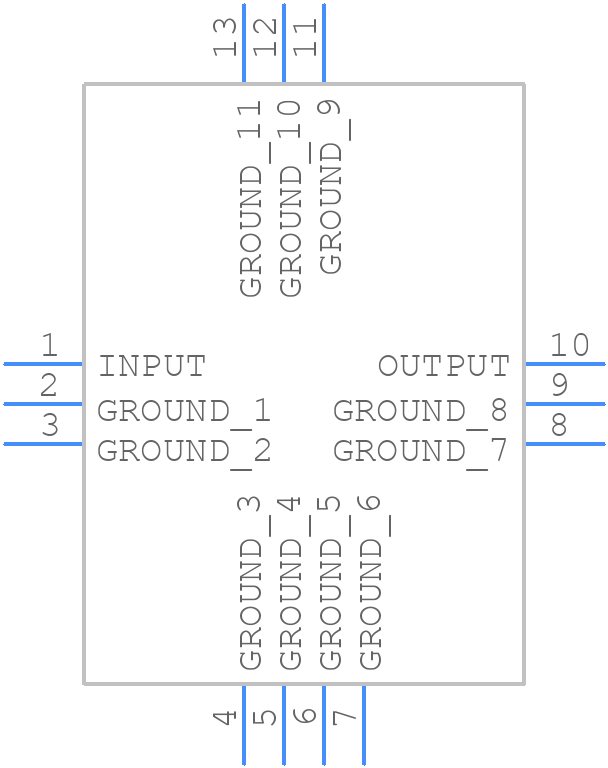

CBP-840C+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

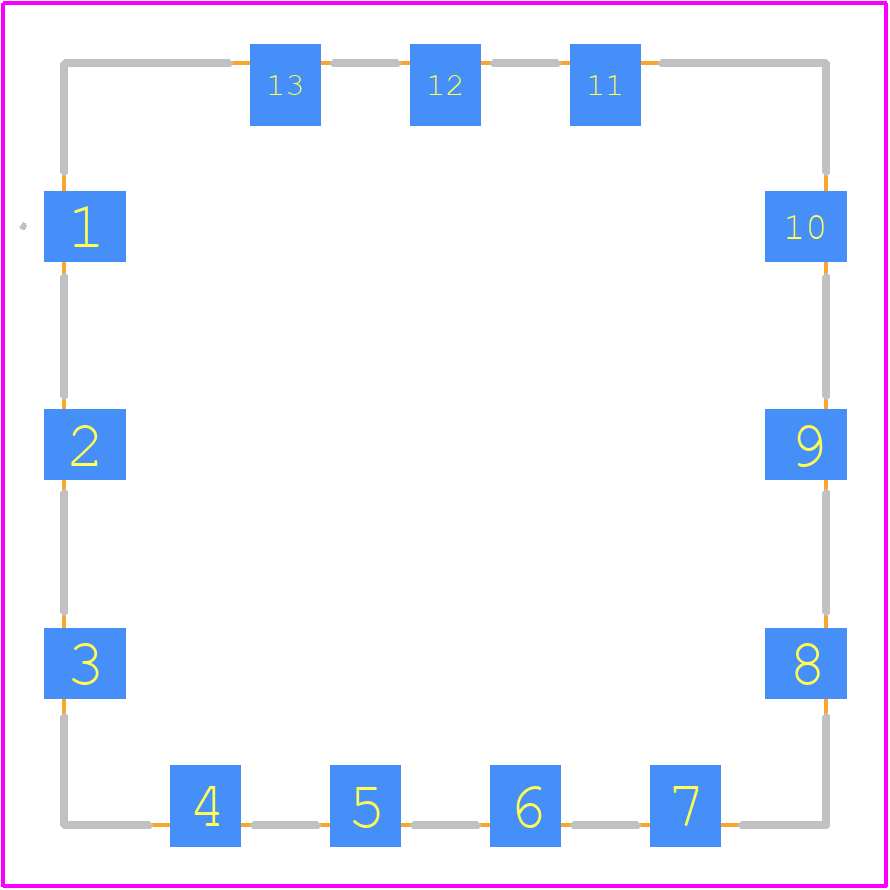

CBP-840C+ - Mini-Circuits PCB footprint - Other - Other - MP1766_2026-1.15
click to zoom
3D Models
CBP-840C+ - Mini-Circuits - 3D model - Other - MP1766_2026-1.15
click to zoom

CBP-840C+ Details

  • Manufacturer Part Number:

    CBP-840C+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    840 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    5.33 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.78

  • Width:

    19.05 mm

CBP-840C+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for CBP-840C+ is -40°C to 85°C, as per the manufacturer's recommendation.
  • Yes, CBP-840C+ is a high-reliability component, suitable for demanding applications, including military, aerospace, and industrial uses.
  • To optimize the performance of CBP-840C+, ensure proper impedance matching, use a good quality PCB with minimal losses, and consider using external tuning elements if necessary.
  • Yes, CBP-840C+ is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The recommended PCB footprint for CBP-840C+ is a 3-pad layout with a center pad diameter of 1.4 mm and two outer pads with a diameter of 0.8 mm, spaced 2.5 mm apart.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP-840C+ Overview

Use the download button to access the CBP-840C+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP-8, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
